58531 Repair Manual (CX) | Page 437

Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWAdjust emergency brake
Adjust emergency brake, page 437 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.437
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.436)

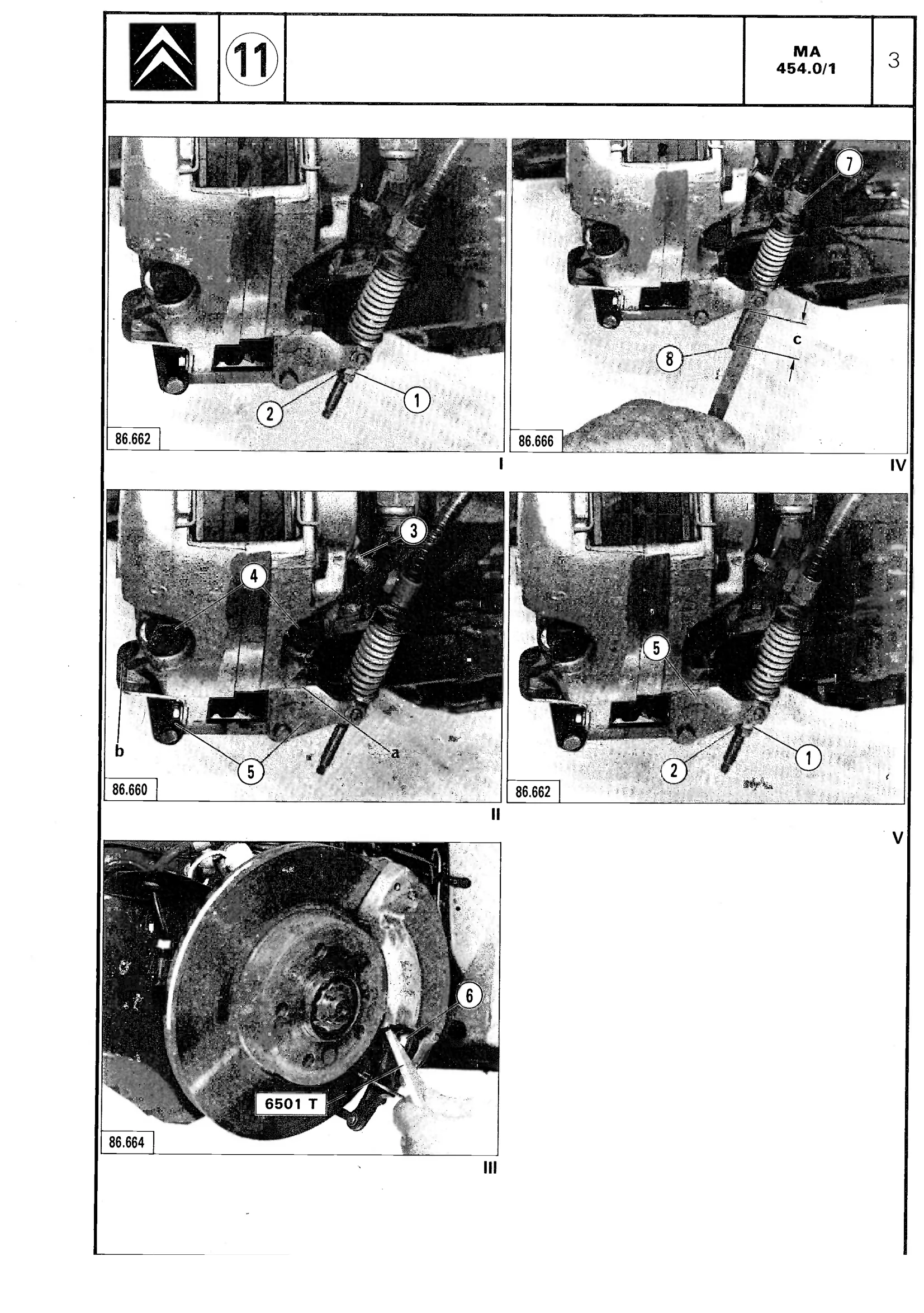

Turn eccentric (6) with TOOL 6501-T Fig. Ill, as shown on the table below, until the pads just contact the disc at the point of maximum run-out. L.H. SWIVEL R.H. SWIVEL Outer Inner Inner Outer eccentric | eccentric | eccentric | eccentric Direction of up- up- down- wards wards adjust. =| (Clockwise, seen from the rear of the swivel) Tighten screws (4) to 7.5 mdaN, Fig. Il. Apply same procedure to each eccentric of the brake unit.
