REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

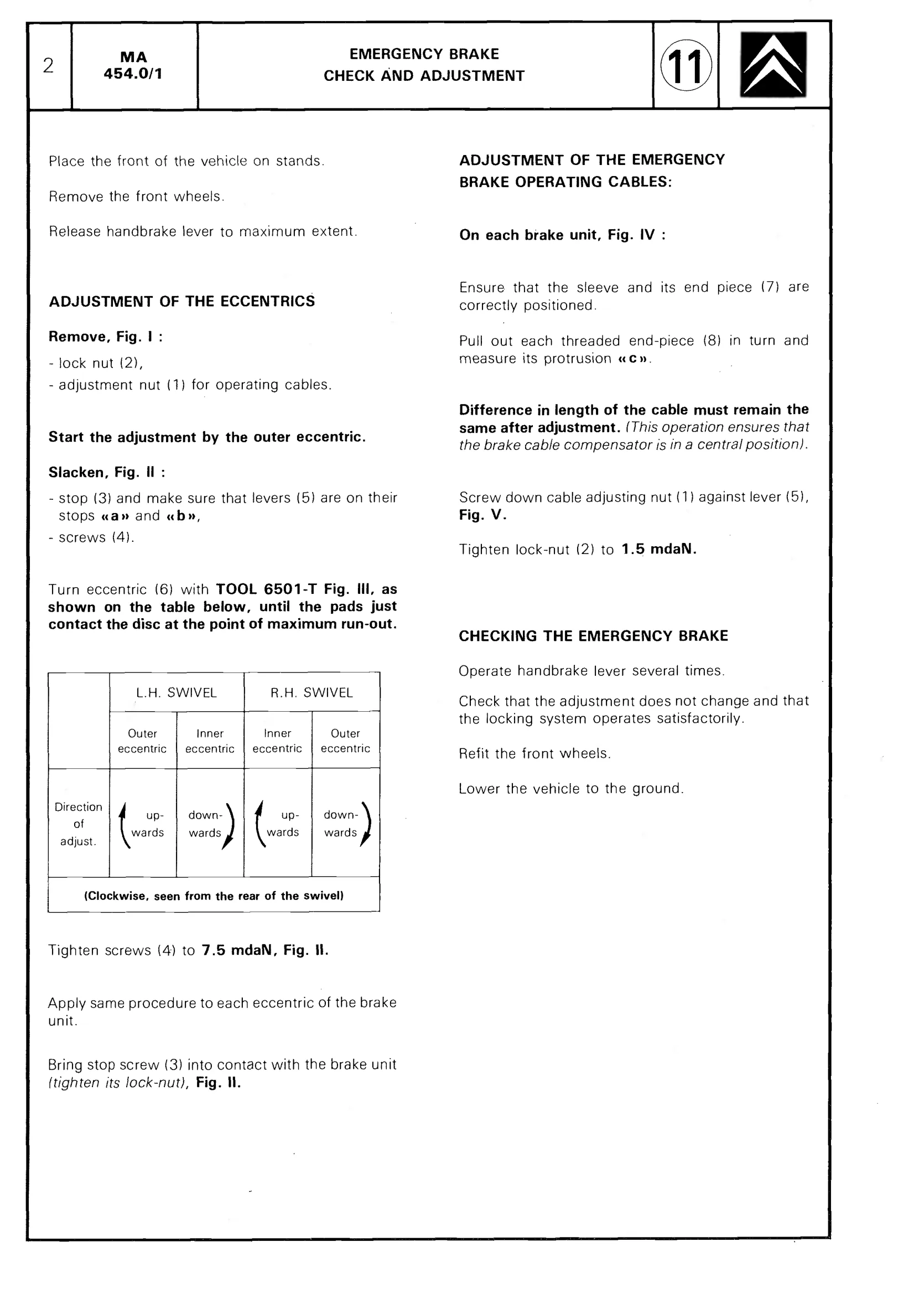

Place the front of the vehicle on stands Remove the front wheels. Release handbrake lever to maximum extent. ADJUSTMENT OF THE ECCENTRICS Remove, Fig. | : - lock nut (2), - adjustment nut (1) for operating cables. Start the adjustment by the outer eccentric. Slacken, Fig. Il : - stop (3) and make sure that levers (5) are on their stops «a» and «b», - screws (4).
Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
