Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988

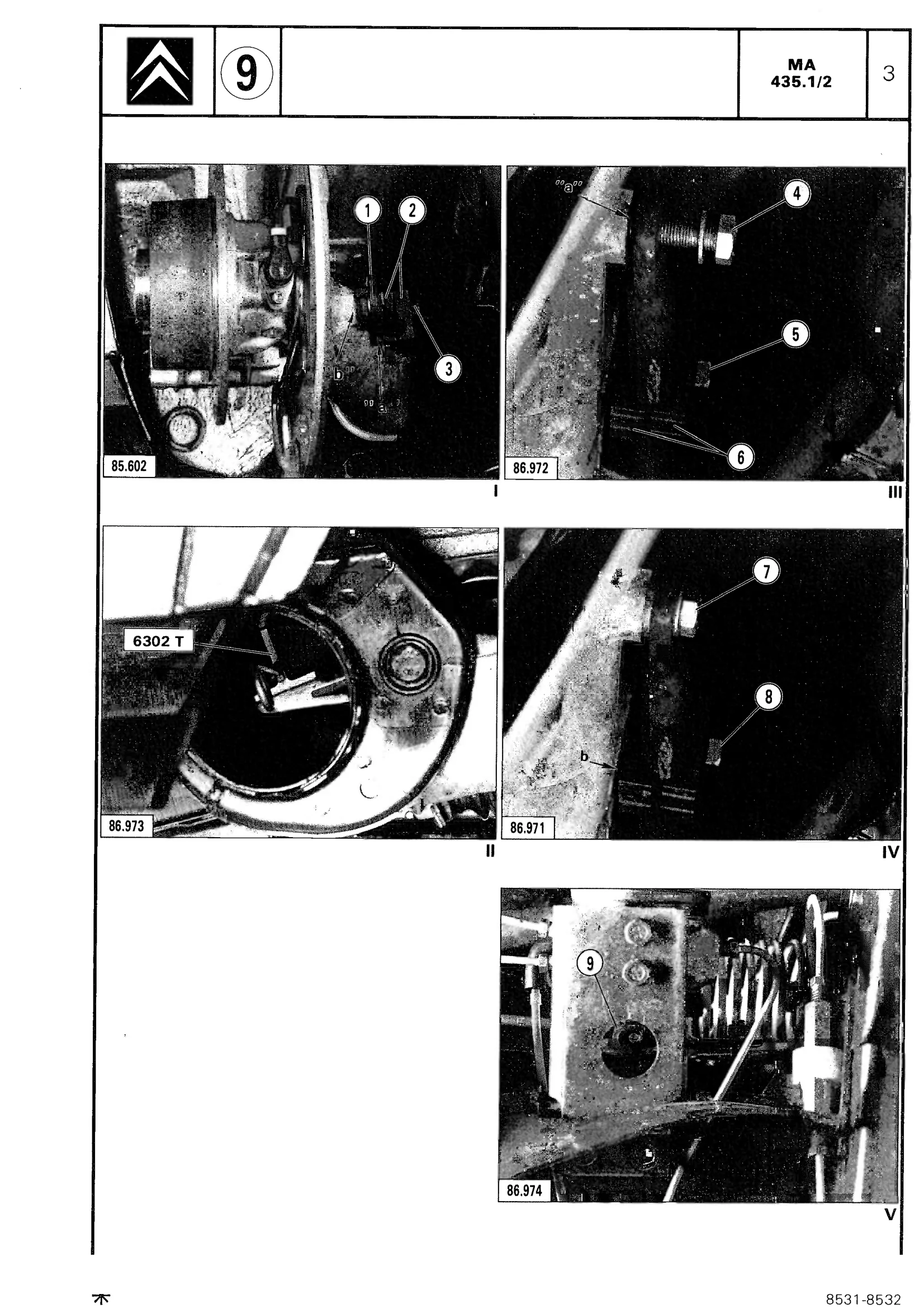

SECTION OVERVIEWRemove/fit rear anti-roll bar
Remove/fit rear anti-roll bar, page 401 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.401
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.400)

Engage the anti-roll bar towards the R.H. side of the car. Utilize tools 6302-T to place the axle arms in line, (in the «normal driving» position), Fig. I. Position, but do not tighten: - both half-bearings (6), - screw (5), - screw (4). Centre the anti-roll bar in the rear axle unit ; the clearance at «a» should be the same on either side (LH and RH), to within 1 mm. Available shim thicknesses: 0.5-1-2-3-4mm.

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
