Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWRemove/fit rear anti-roll bar

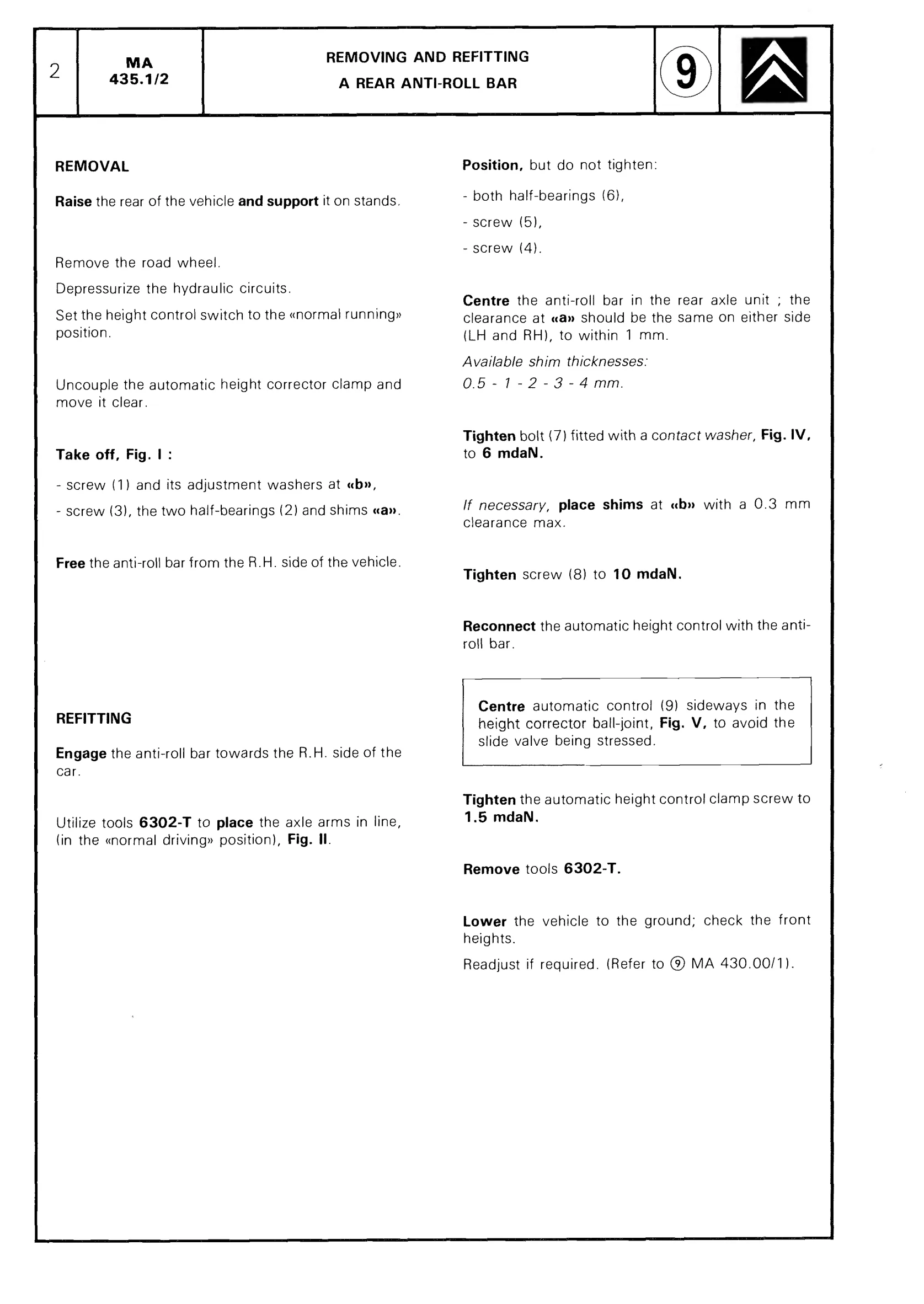

Remove/fit rear anti-roll bar, page 400 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.400
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

REMOVAL Raise the rear of the vehicle and support it on stands. Remove the road wheel. Depressurize the hydraulic circuits. Set the height control switch to the «normal running» position. Uncouple the automatic height corrector clamp and move it clear. Take off, Fig. |: - screw (1) and its adjustment washers at «b», - screw (3), the two half-bearings (2) and shims «a». Free the anti-roll bar from the R.H. side of the vehicle. REFITTING

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
