SECTION OVERVIEWRemove/fit anti-roll bar

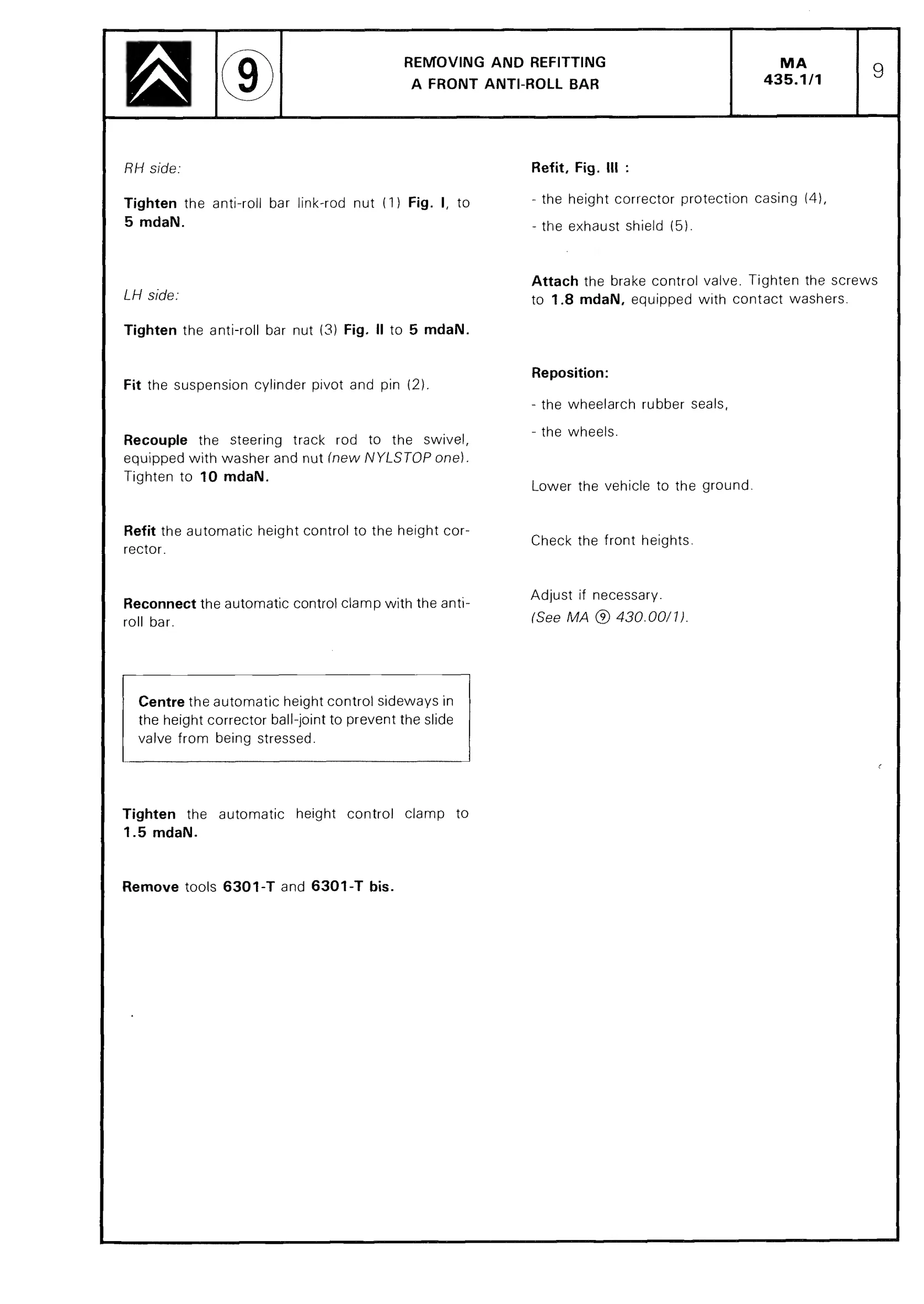

Remove/fit anti-roll bar, page 398 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.398
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

RH side: Tighten the anti-roll bar link-rod nut (1) Fig. I, to 5 mdaN. LH side: Tighten the anti-roll bar nut (3) Fig. Il to 5 mdaN. Fit the suspension cylinder pivot and pin (2). Recouple the steering track rod to the swivel, equipped with washer and nut (new NYLSTOP one). Tighten to 10 mdaN. Refit the automatic height control to the height cor- rector. Reconnect the automatic clamp with the anti- roll bar.

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
