58531 Repair Manual (CX) | Page 396

Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWRemove/fit anti-roll bar

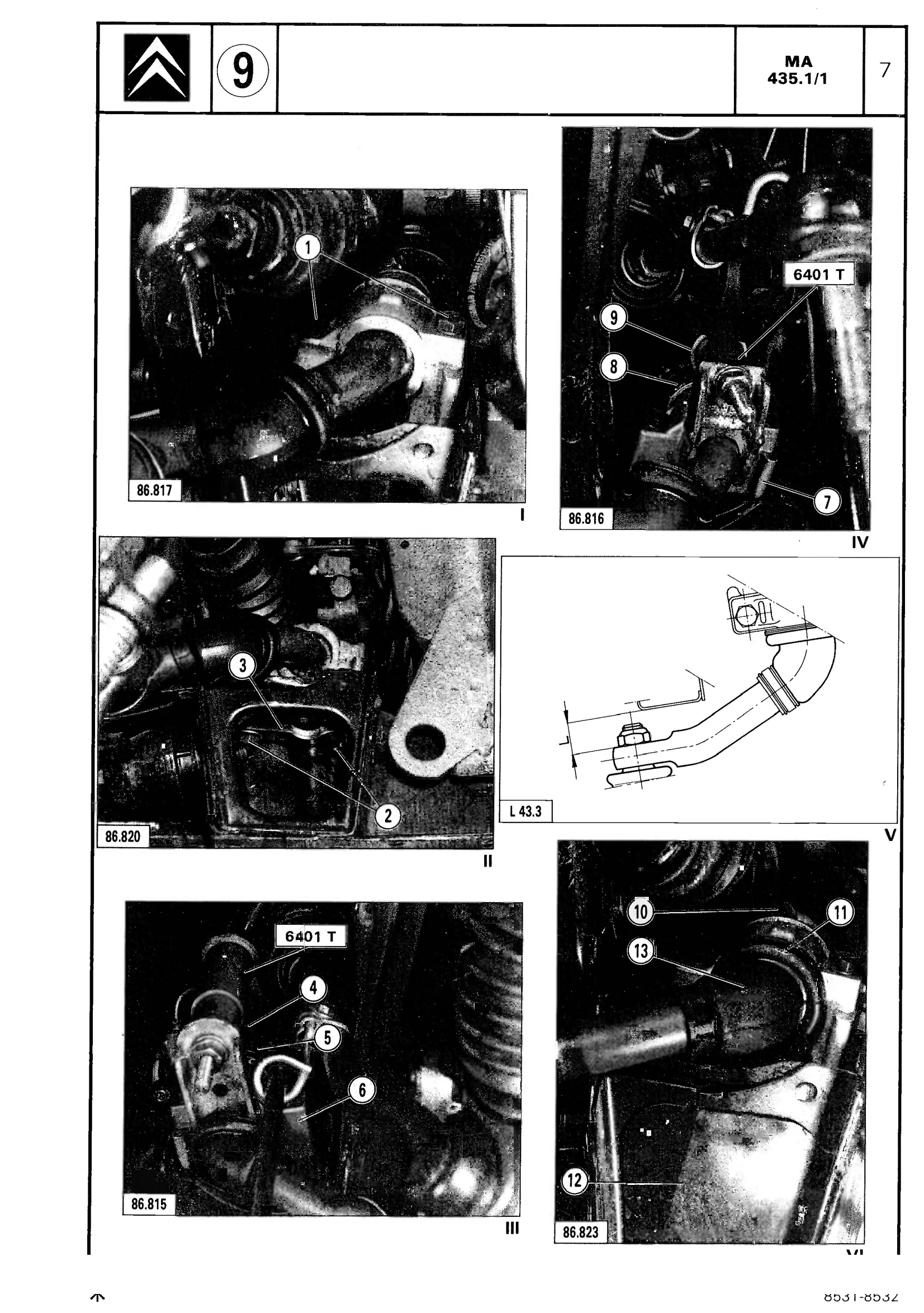

Remove/fit anti-roll bar, page 396 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.396
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.395)

Equip each bearing with the set of clamps 6401-T, Fig. Ill and IV, placing the modified too! to the LH side). Compress springs (5) and (8) moderately. (The aim of this operation is to hold both half ball-joints and thrust cups in position). Make sure that bearings (6) and (7) are in contact with the axle unit. IMPORTANT : if one bearing does not touch the axle, proceed as follows:

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
