58531 Repair Manual (CX) | Page 335

Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWRemove, fit upper wheel arm

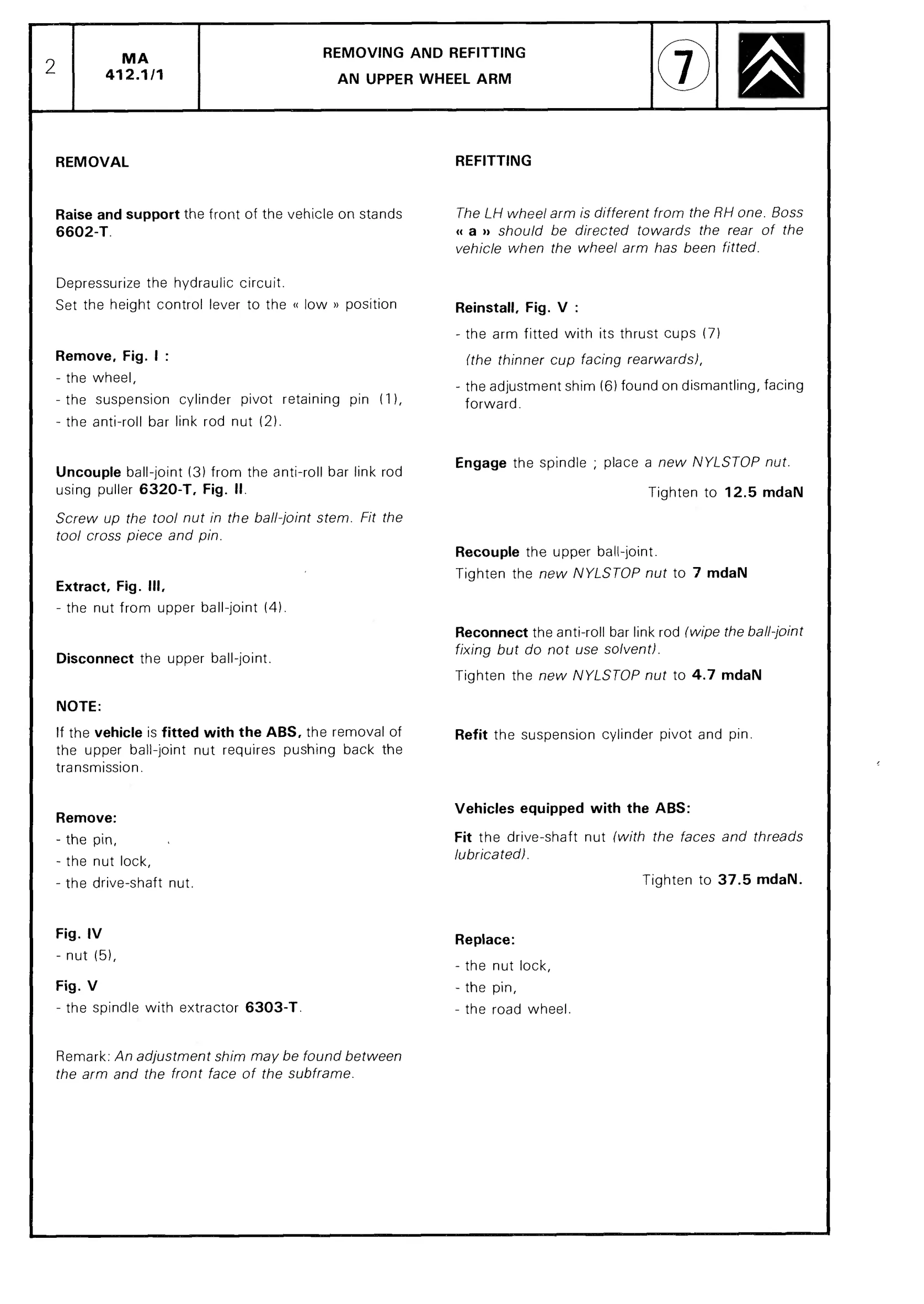

Remove, fit upper wheel arm, page 335 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.335
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

REMOVAL Raise and support the front of the vehicle on stands 6602-T. Depressurize the hydraulic circuit. Set the height control lever to the « low » position Remove, Fig. | : - the wheel, - the suspension cylinder pivot retaining pin (1), - the anti-roll bar link rod nut (2). Uncouple ball-joint (3) from the anti-roll bar link rod using puller 6320-T, Fig. WU. Screw up the tool nut in the ball-joint stem. Fit the tool cross piece and pin.

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
