SECTION OVERVIEWRemove, fit upper wheel arm

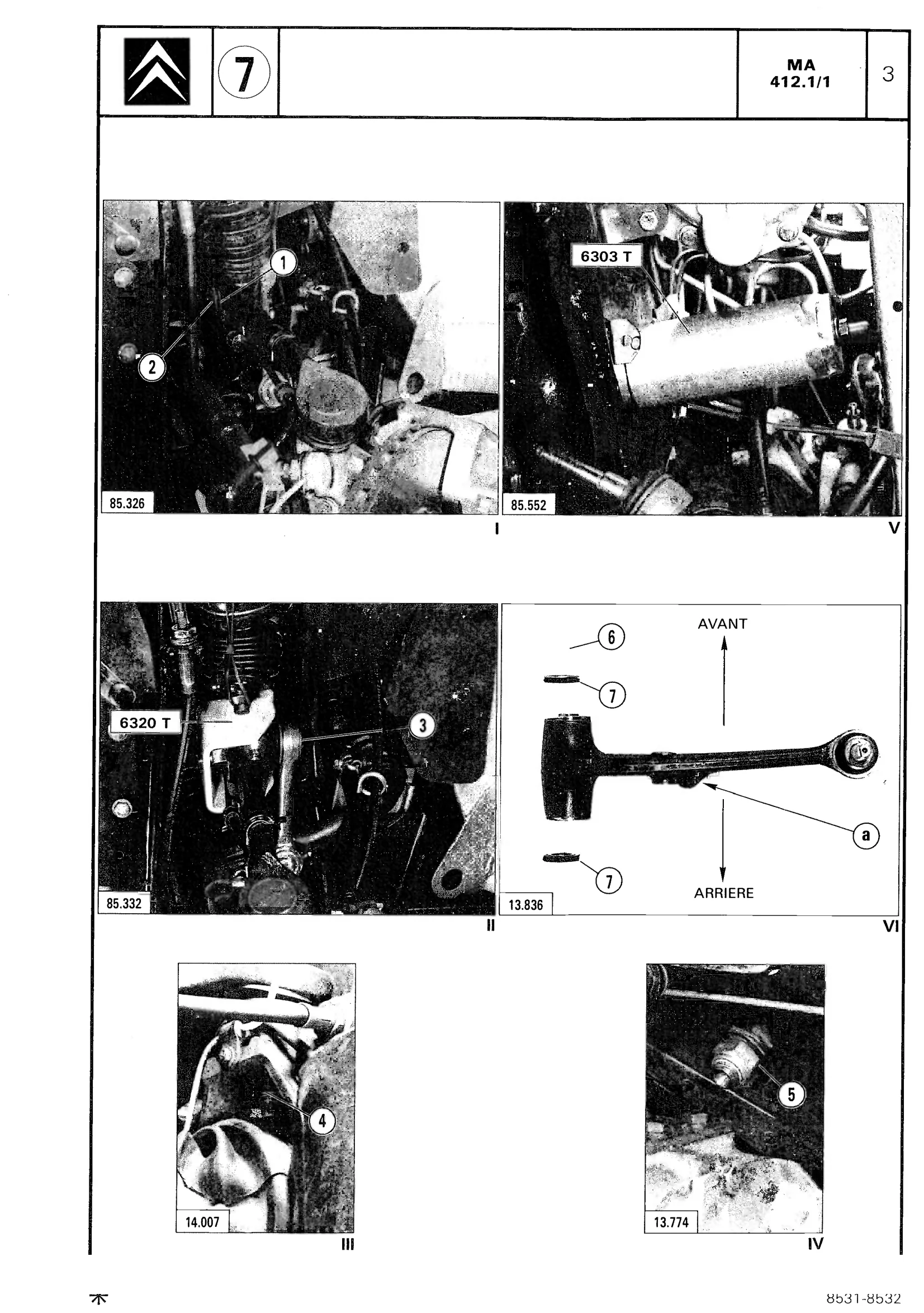

Remove, fit upper wheel arm, page 336 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.336
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.335)

Extract, Fig. Ill, - the nut from upper ball-joint (4). Disconnect the upper ball-joint. NOTE: If the vehicle is fitted with the ABS, the removal of the upper ball-joint nut requires pushing back the transmission. Remove: - the pin, ~ the nut lock, - the drive-shaft nut Fig. IV - nut (5), Fig. V - the spindle with extractor 6303-T. Remark: An adjustment shim may be found between the arm and the front face of the REFITTING

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
