58531 Repair Manual (CX) | Page 124

Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWCheck, adjust engine mounts

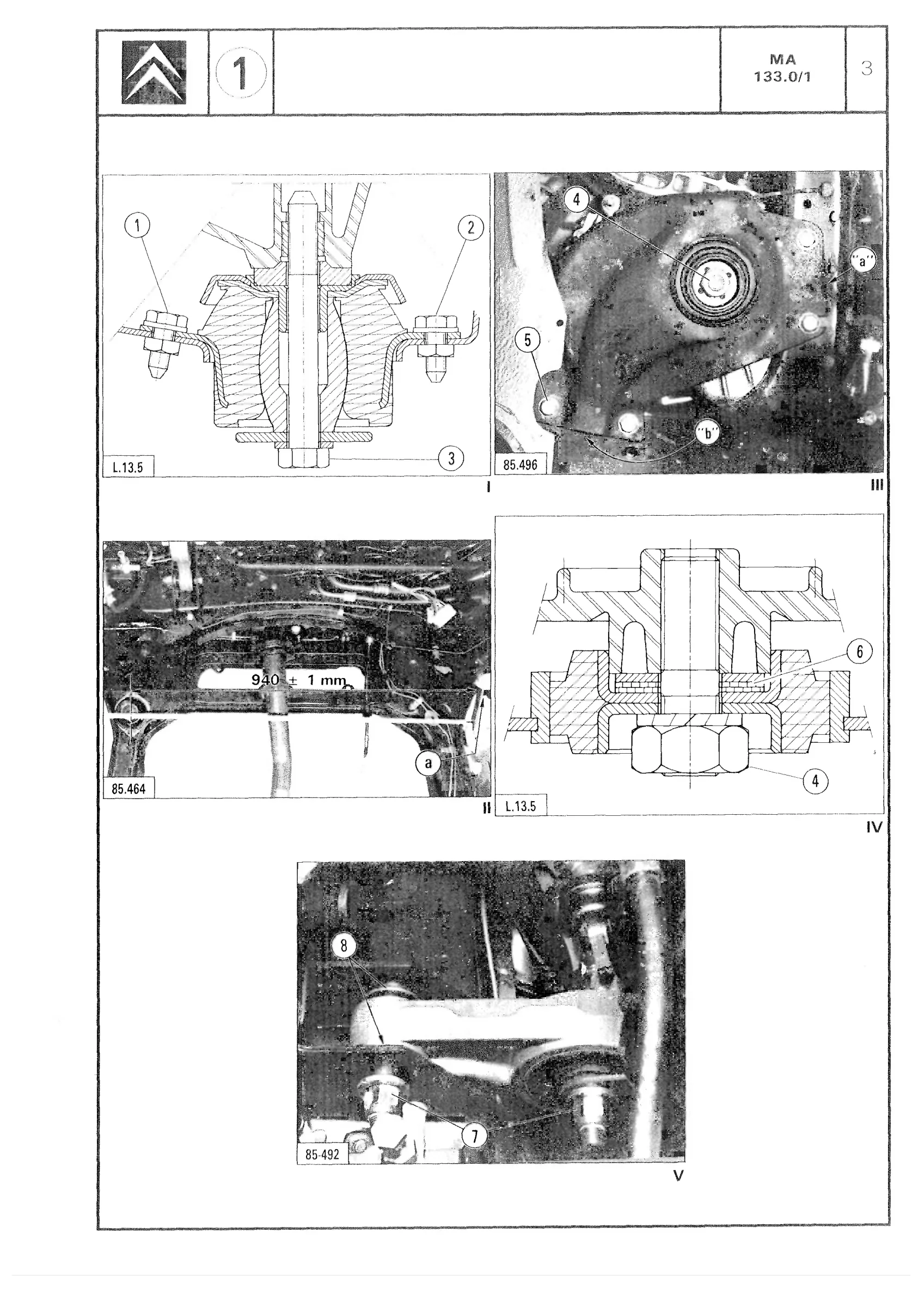

Check, adjust engine mounts, page 124 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.124
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.123)

The power unit assembly being in on the RH engine bearer, hold the gearbox side in position insert shims (6) in excess between the bearer and the gearbox - Measure the clearance existing between the engine support bracket plate and the axle contact face at “a! and Ub” Reduce the (6) thickness by the clearance value + 1mm. - Tighten screws (5) to 3 mdaN. - Nut (4) to 16.5 mdaN. Engine torque stay, Fig. V.

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
