Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWCheck, adjust engine mounts

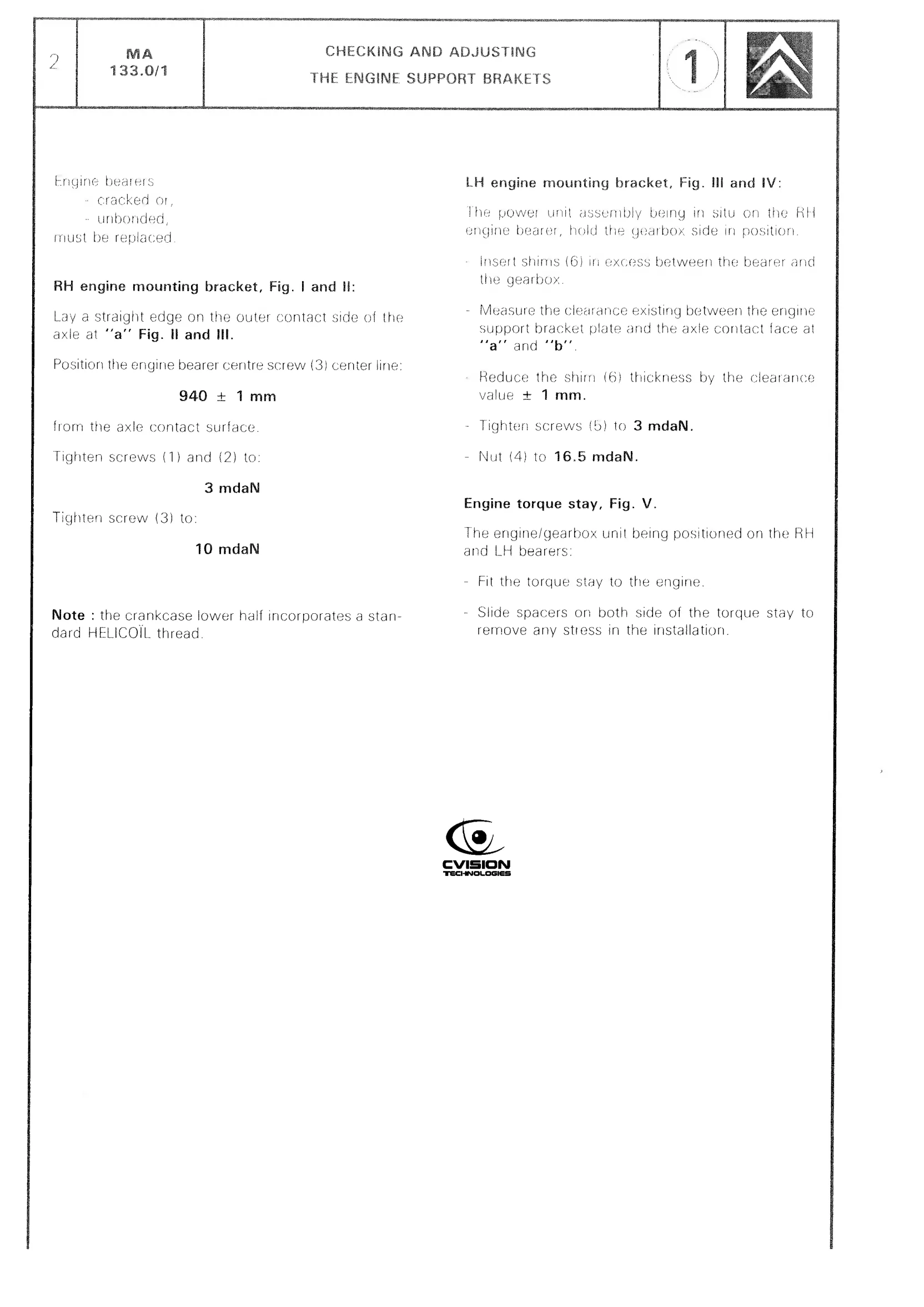

Check, adjust engine mounts, page 123 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.123
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

Engine bear Crack. Lor, must be replaced RH engine mounting bracket, Fig. | and Ii: Lay a straight edge on the outer contact side of the axle at ‘a’ Fig. Hand II. Position the engine bearer screw (3) center line: 940 + 1mm from the axle contact surface Tighten screws (1) and (2) to 3 mdaN Tighten screw (3) to: 10 mdaN Note : the crankcase lower half incorporates a stan- HELICOIL thread LH engine mounting bracket, Fig. Ill and IV:

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
