SECTION OVERVIEWCheck valve timing / Recommended tools

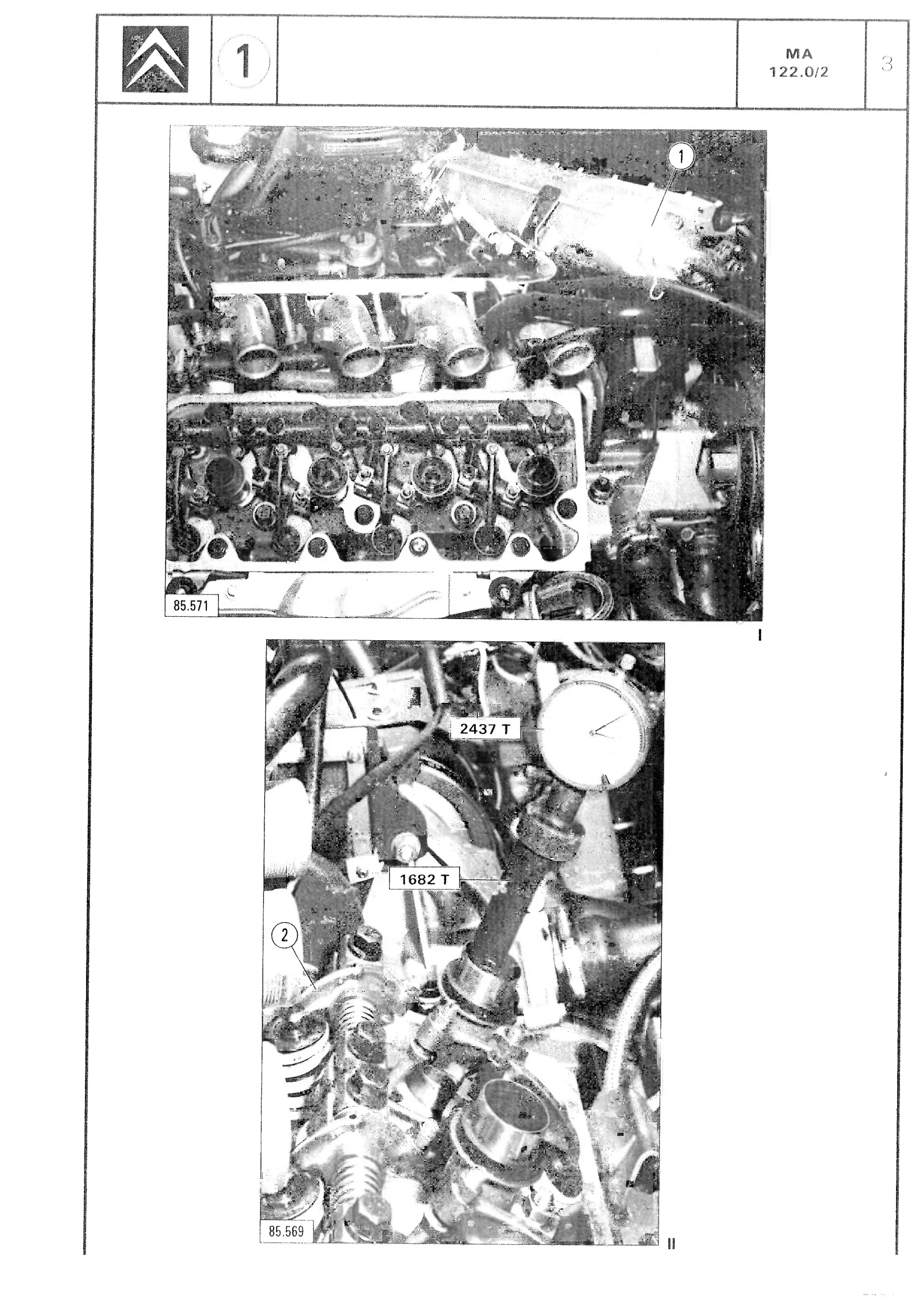

Check valve timing / Recommended tools, page 103 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.103
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.102)

Adjust cylinder No. 1 inlet valve (2) clearance to 1.10 mm, Fig. Il. Rotate the crankshaft through a complete turn in the normal direction of engine rotation Record the clearance of cylinder No. 1 inlet valve the figure should be comprised between 0.05 and 0.25 mm Remove 1682-T. Check and adjust the rocker clearances: Inlet = 0.15 mm Exhaust = 0.20 mm Refit: - the cover, - the inlet pipes, - the spark plugs (tightening torque: 2.5 mdaN), Lower the vehicle to the ground

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
