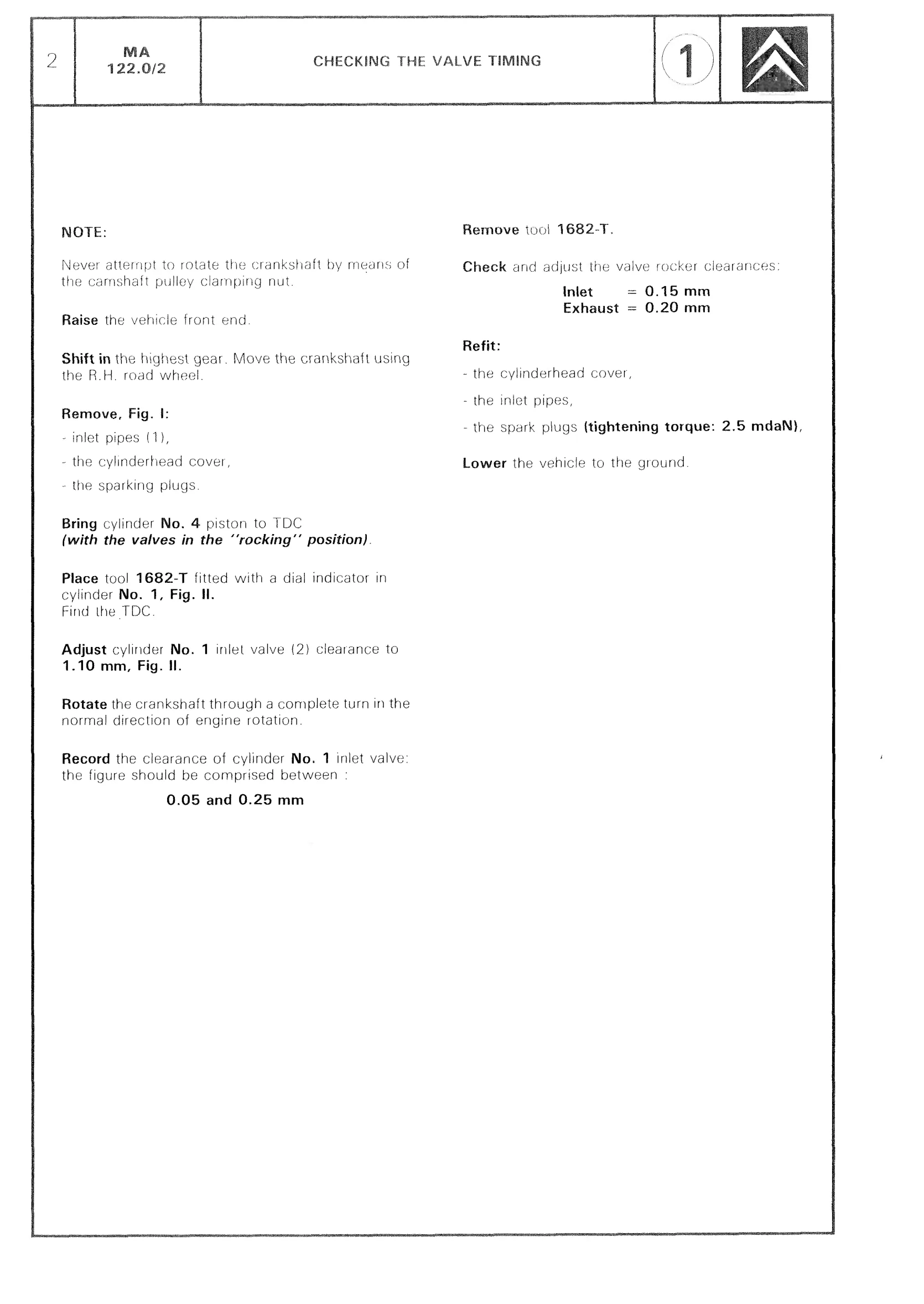

Check valve timing / Recommended tools, page 102 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.102
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

NOTE: Never to rotate the crankshaft by means of the ce aft pulley clamping nut Raise the vehicle front end Shift in the highest gear. Move the crankshaft using the R.H. road wheel Remove, Fig. |: - inlet pipes (1), - the cover, - the sparking plugs Bring cylinder No. 4 piston to TDC (with the valves in the “‘rocking’’ position) Place tool 1682-T fitted with a dial indicator in cylinder No. 1, Fig. I. Find the TDC

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
