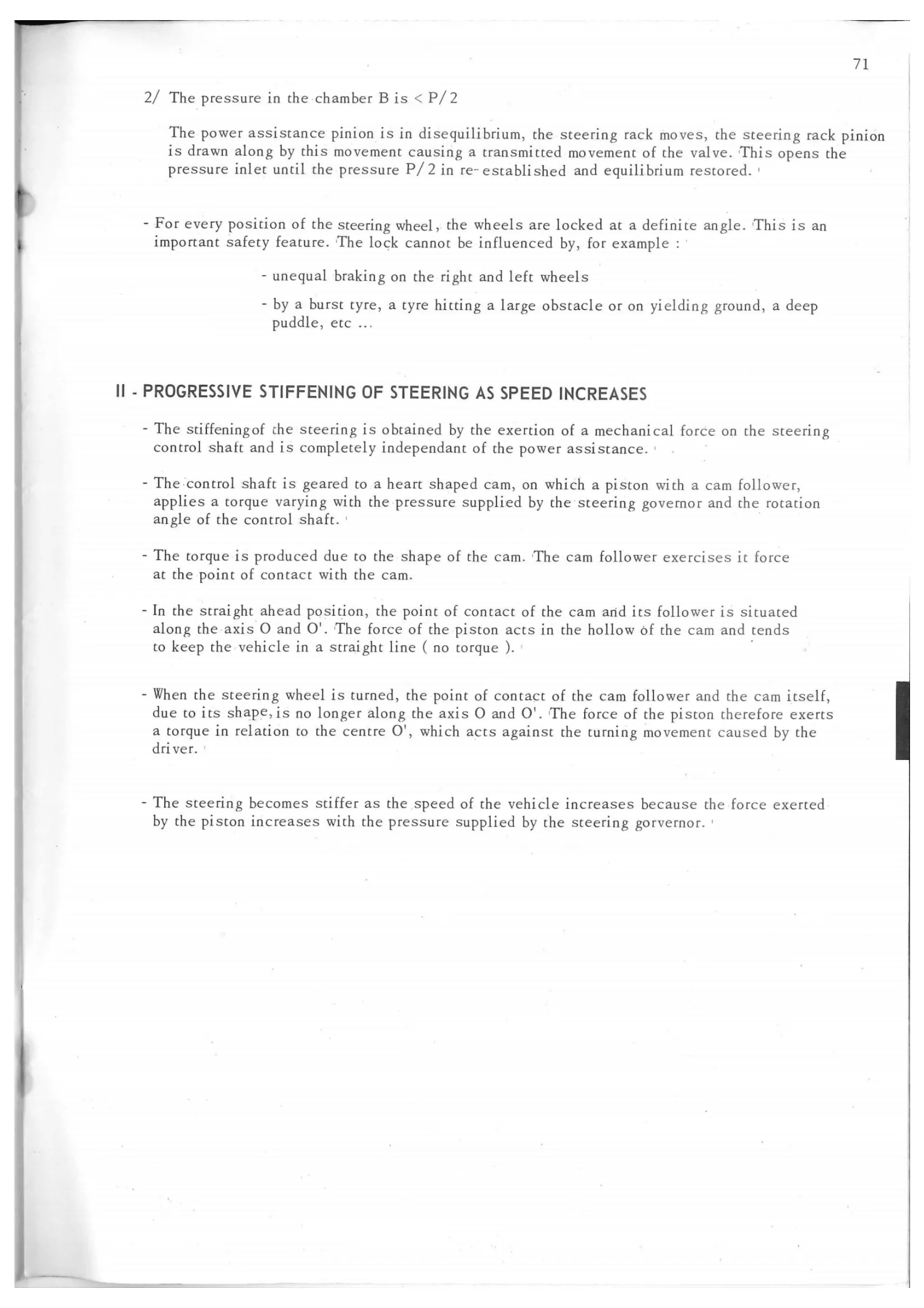

71 2/ The pressure in the chamber B is < P/2 The power assistance pinion is in disequilibrium, the steering rack moves, the steering rack pinion is drawn along by this movement causing a transmitted movement of the valve. This opens the pressure inlet until the pressure P/2 in re-established and equilibrium restored. '
