REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.83)

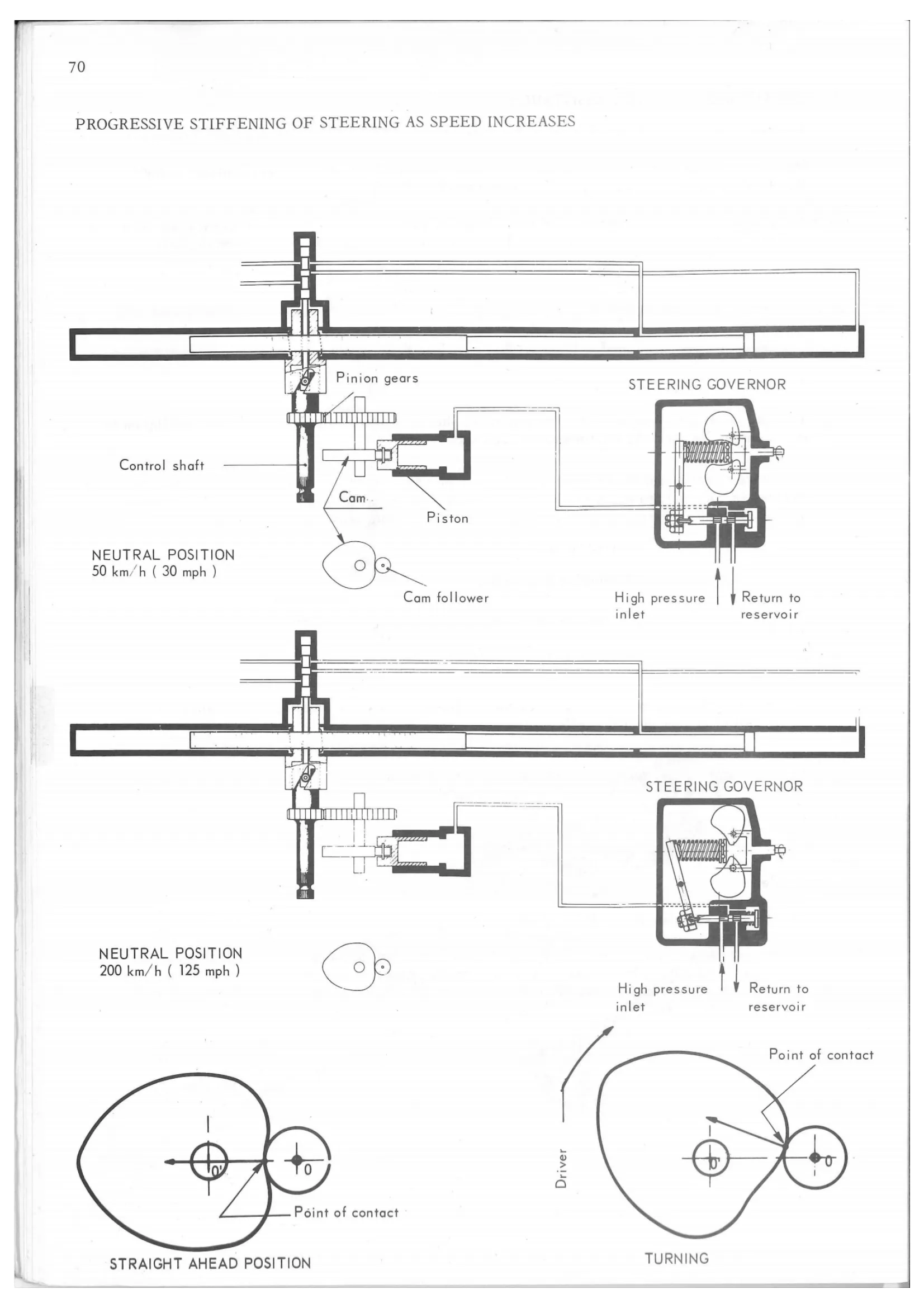

- The system, which makes it possible to obtain a pressure of P/2 in chamber B or to bring this chamber in communication with either the pressure inlet pipe or the return pipe to the reservoir depending on the direction of rotation exerted on the steering wheel, is composed of : - A control shaft - A steering rack pinion - A steering rack with its power assistance piston - A distributor valve with rollers.
