REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

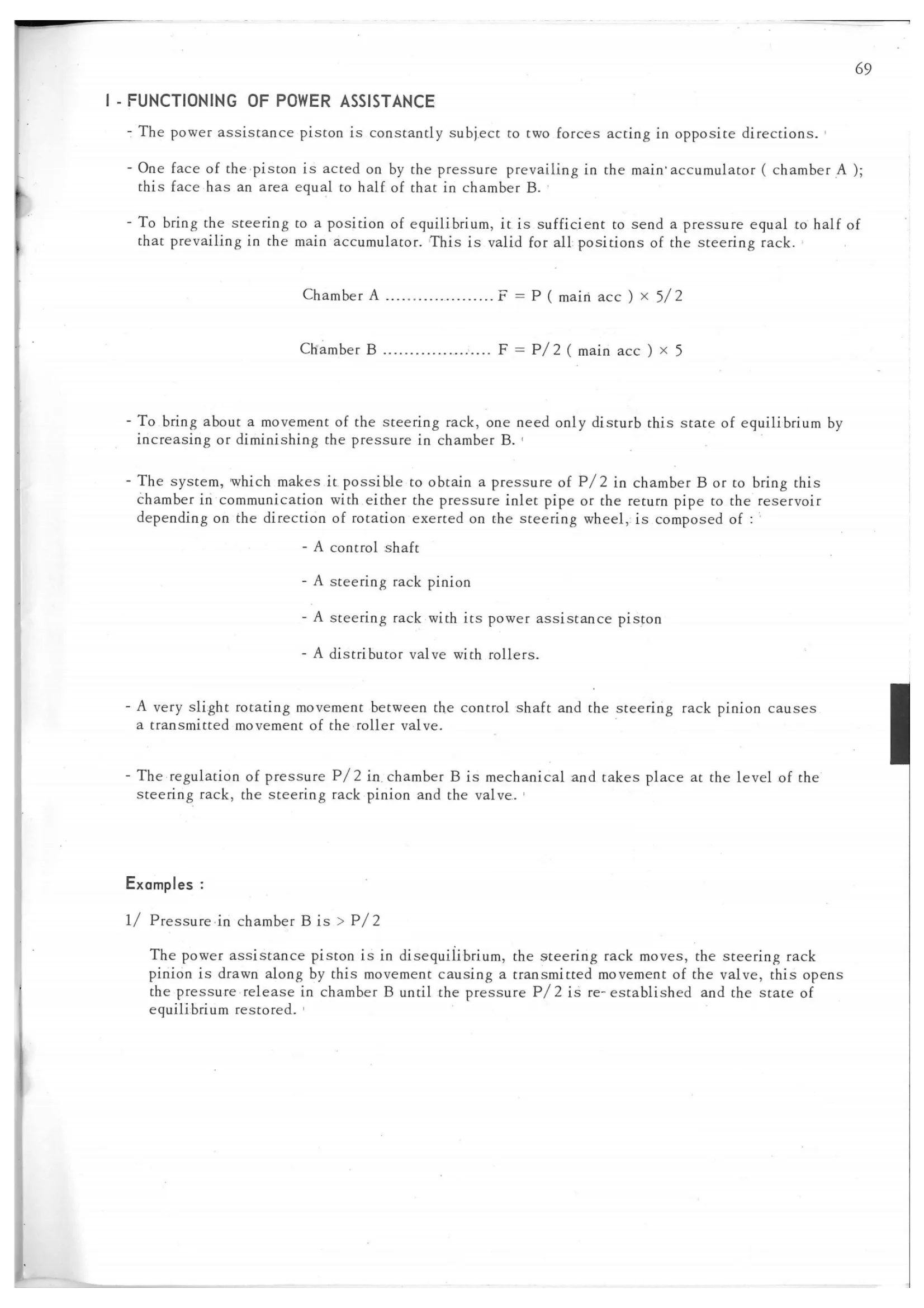

69 | - FUNCTIONING OF POWER ASSISTANCE - The power assistance piston is constantly subject to two forces acting in opposite directions. - One face of the piston is acted on by the pressure prevailing in the main’ accumulator ( chamber A ); this face has an area equal to half of that in chamber B.
