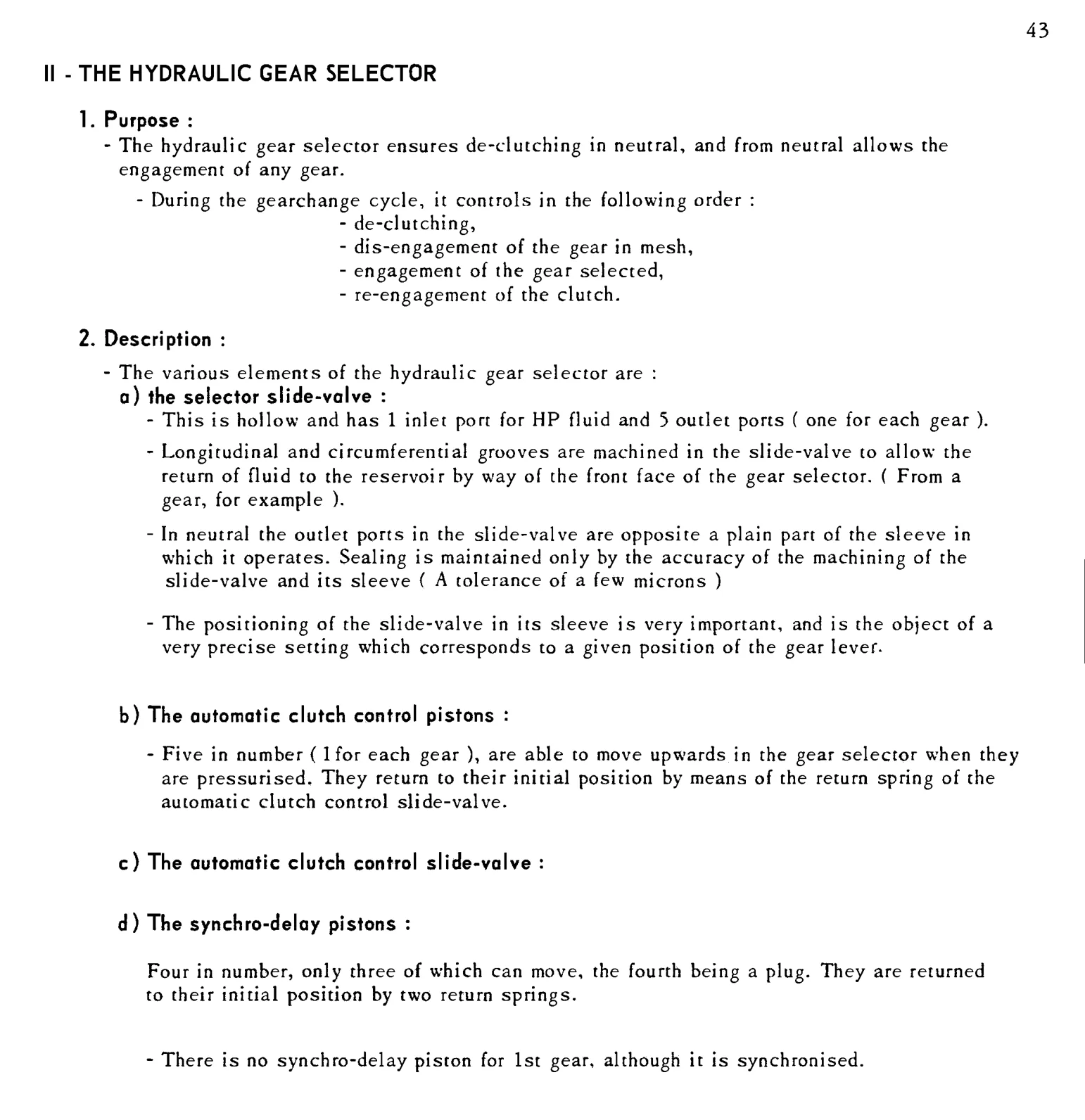

Il - THE HYDRAULIC GEAR SELECTOR 1. Purpose : - The hydraulic gear selector ensures de-clutching in neutral, and from neutral allows the engagement of any gear. - During the cycle, it controls in the following order : - de-clutching, - dis-engagement of the gear in mesh, - engagement of the gear selected, - re-engagement of the clutch. 2. Description :
