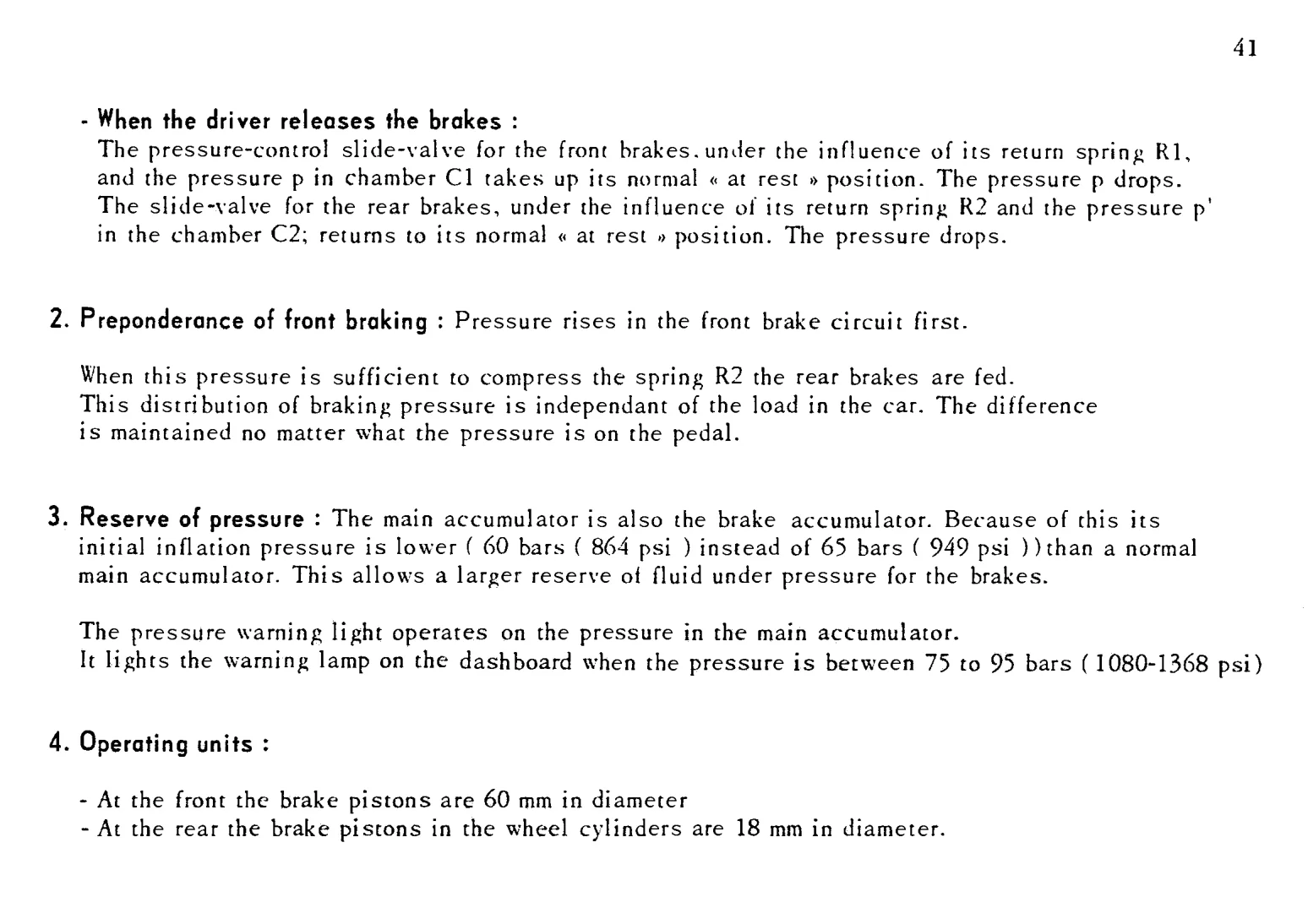

41 - When the driver releases the brakes : The pressure-control slide-valve for the front the influence of its return spring R1, and the pressure p in chamber Cl takes up its normal « at rest » position. The pressure p drops. The slide-valve for the rear brakes, under the influence of its return spring R2 and the pressure p in the chamber C2; returns to its normal « at rest » position. The pressure drops.
