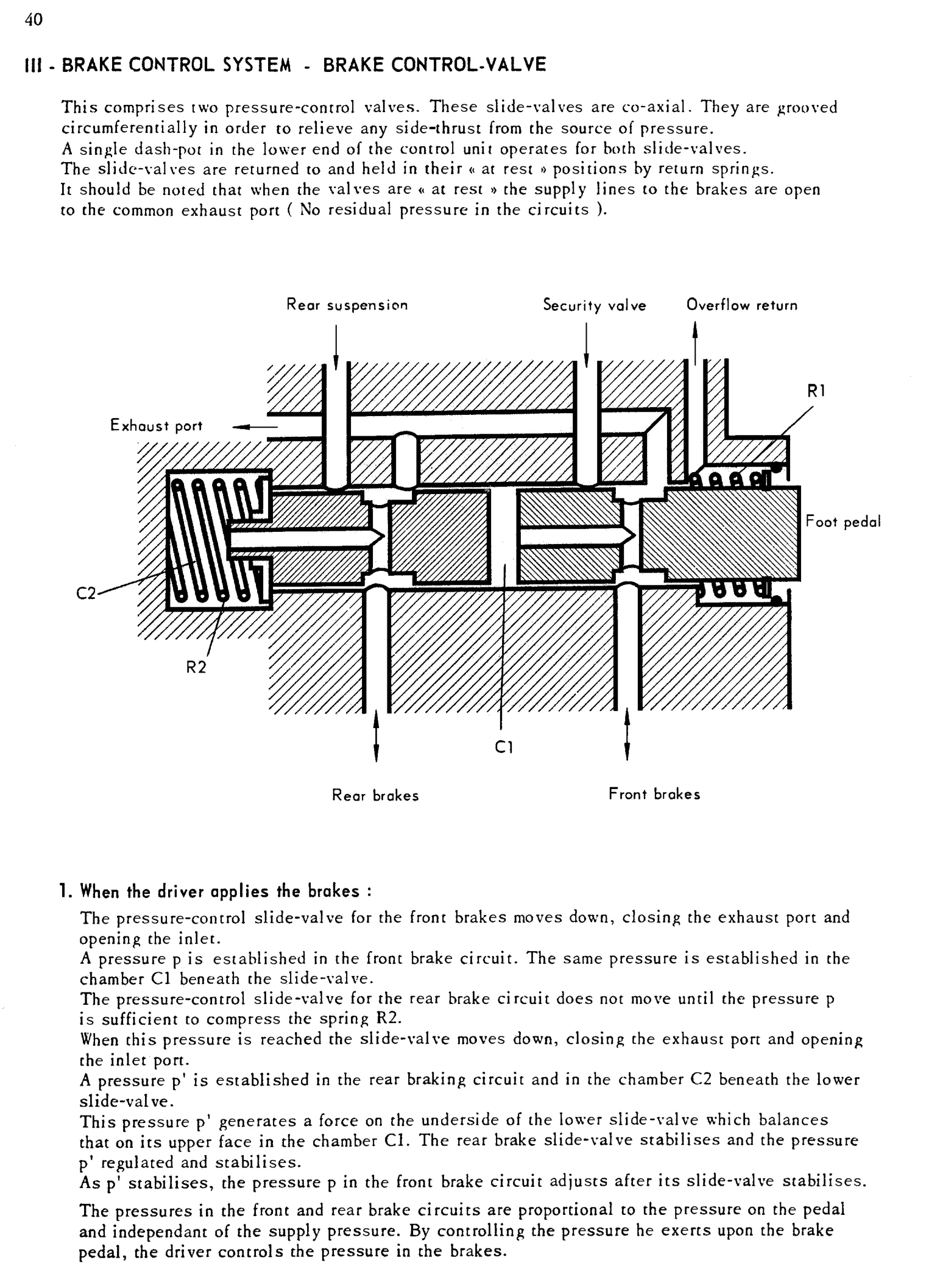

REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.41)
The pressure point of the rollers and thus of the force T moves towards the rear valve. F b a F T Rear. The force F' being greater than F, the pressure in the rear brake circuit rises ( p' greater than p ) and the preponderance of braking effort at the front diminishes.
