REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.37)

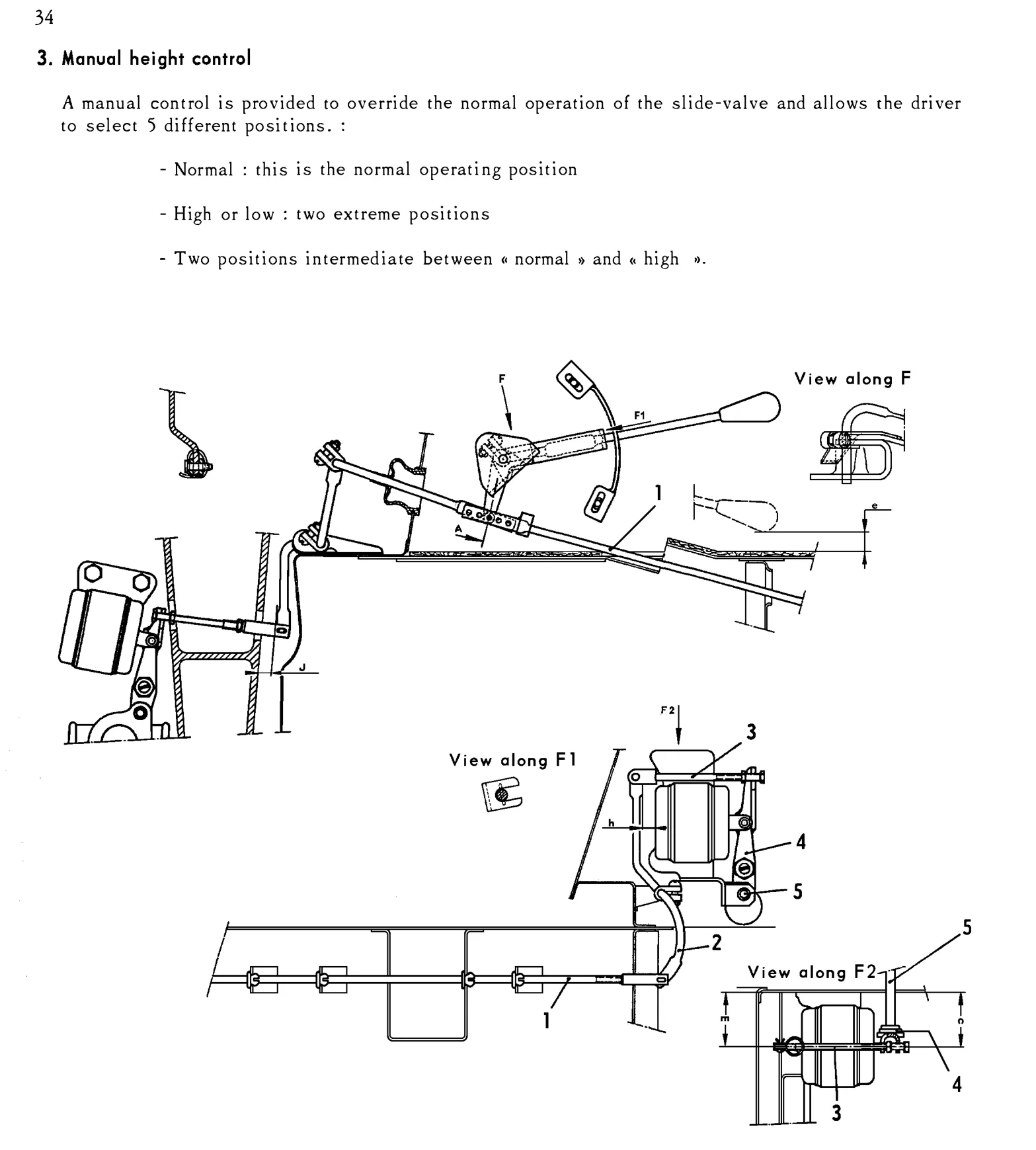

- The rod (3), the lever (4) and consequently the slide-valve are moved towards the front. - The suspension cylinders are connected to the source of high pressure. The amount of fluid in the front suspension units is increased.
