REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

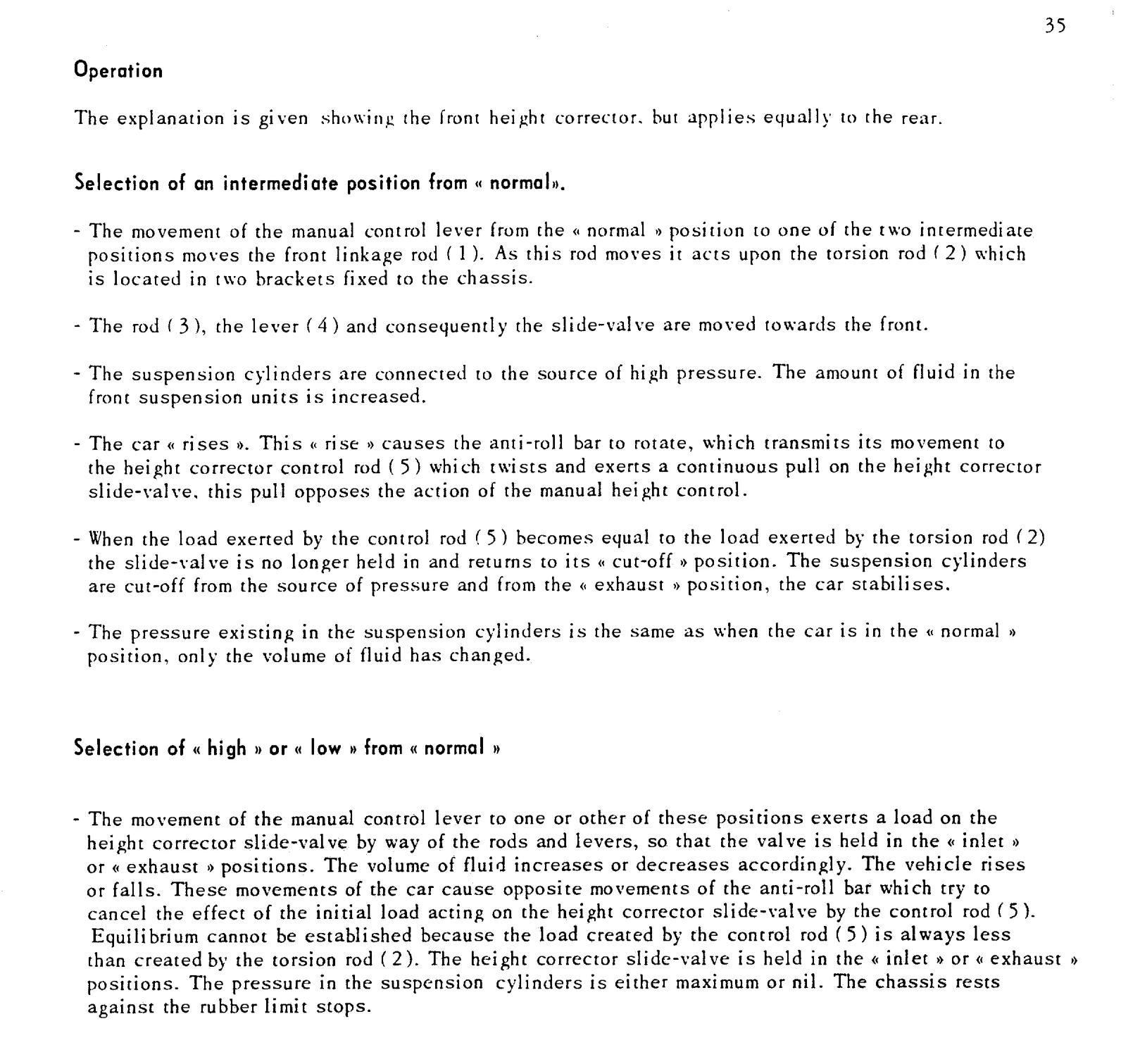

35 Operation The explanation is given showing the front height corrector. but applies equally to the rear. Selection of an intermediate position from « normal», - The movement of the manual control lever from the « normal » position to one of the two intermediate positions moves the front linkage rod (1). As this rod moves it acts upon the torsion rod (2) which is located in two brackets fixed to the chassis.
