REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.34)

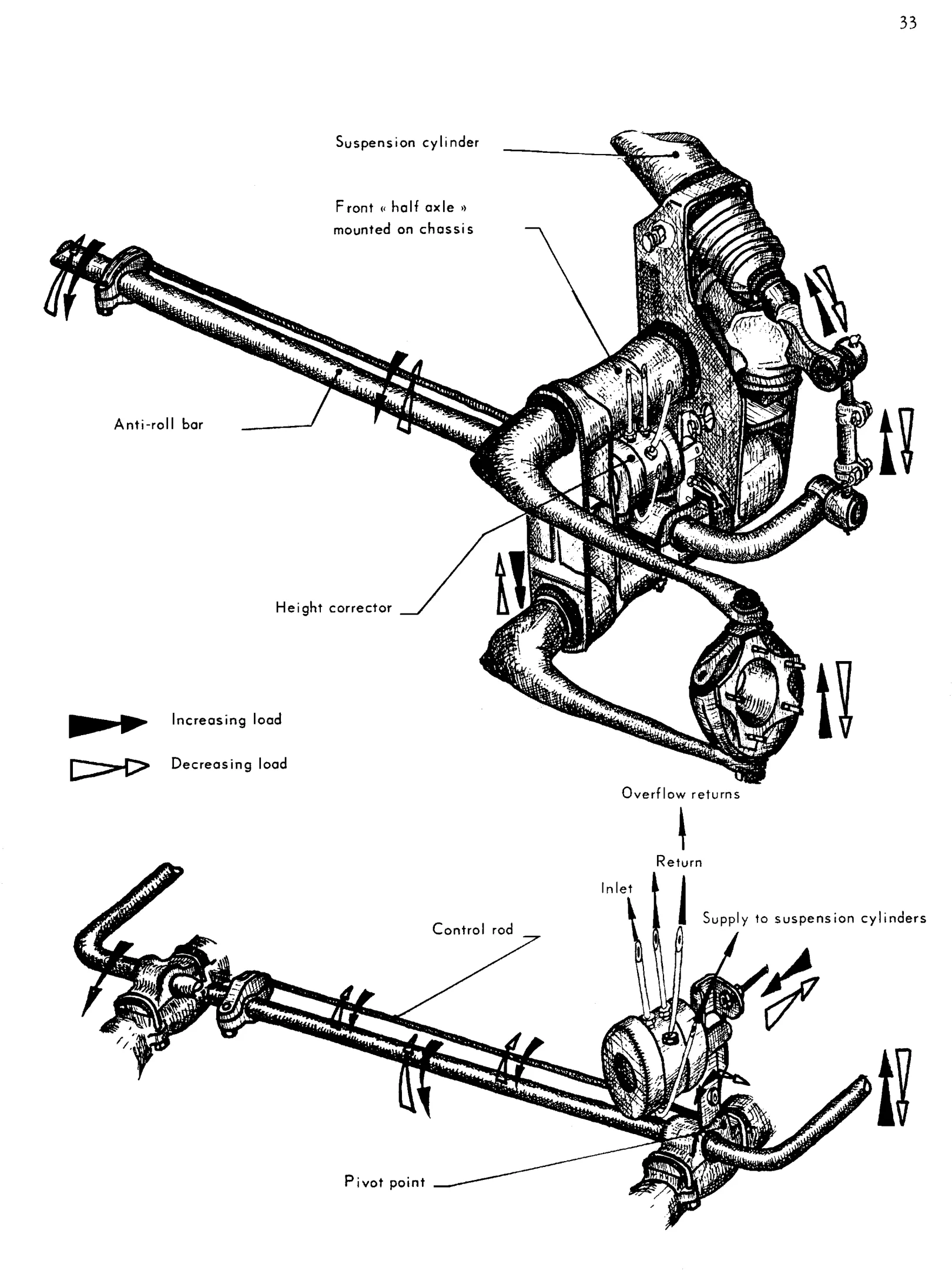

- As the rear the control system is similar, only the anti-roll bar is different. Operation of the controls : As the anti-roll bar is connected to the suspension arms of both wheels, any movement of the latter will cause the anti-roll bar to rotate.
