844 Hydraulics Course Notes — Page 34

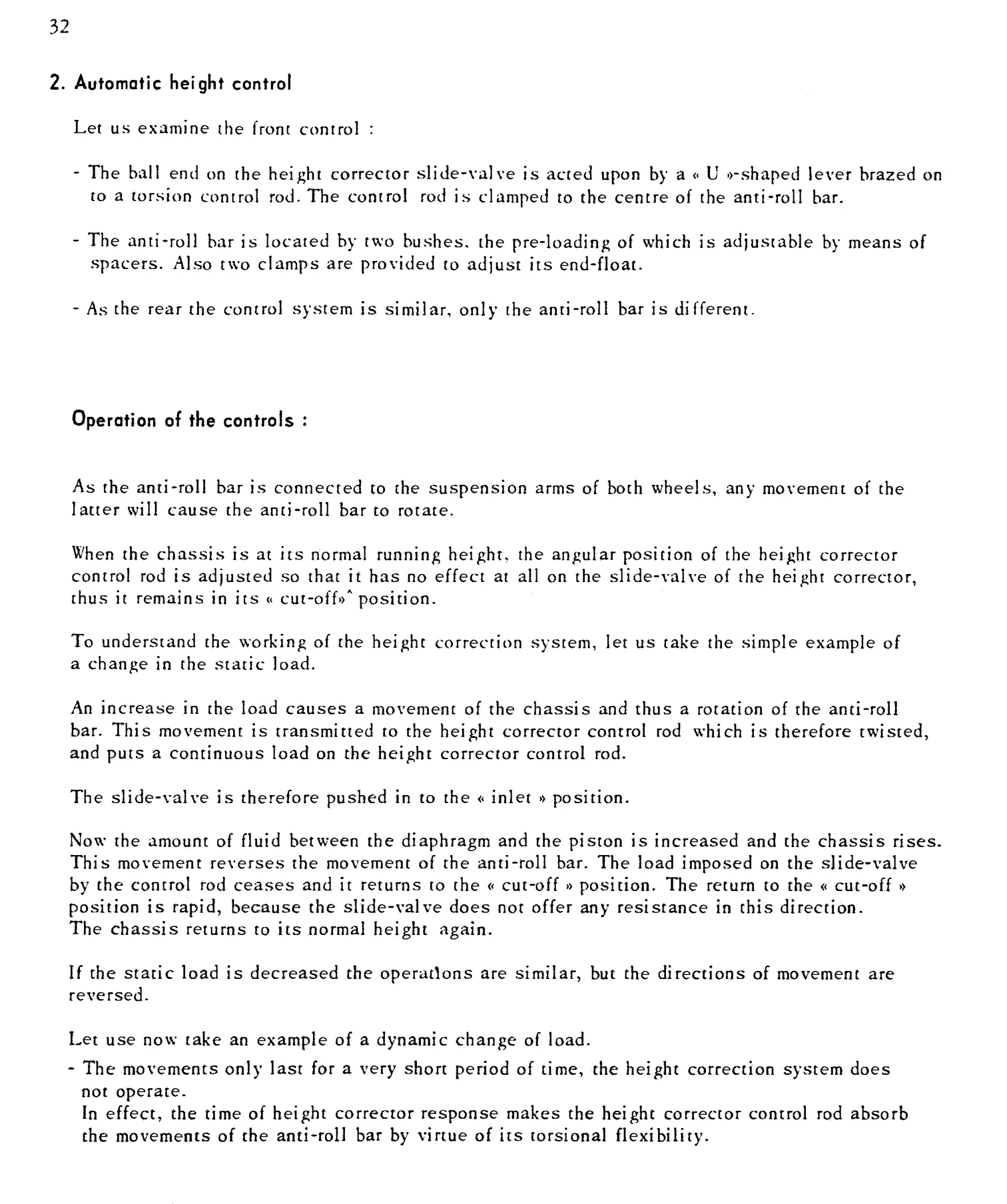

32 2. Automatic height control Let us examine the front control : - The ball end on the height corrector slide-val ve is acted upon by a « U »-shaped lever brazed on to a torsion control rod. The control rod is clamped to the of the anti-roll bar. - The anti-roll bar is located by two bushes. the of which is adjustable by means of spacers. Also two clamps are provided to adjust its end-float.
