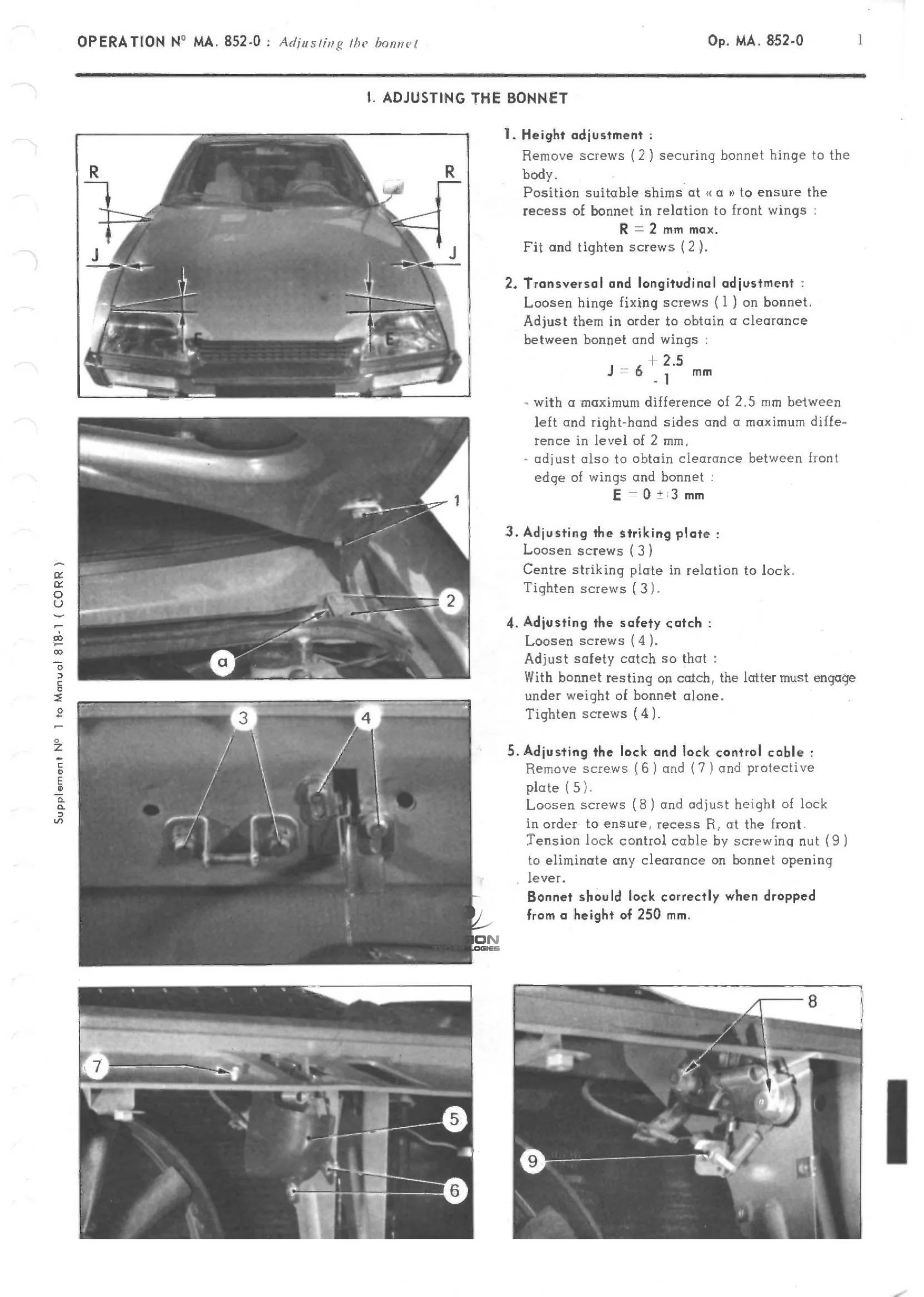

Supplement N° 1 to Manual 818-1 ( CORR ) se SEP Tr. 4. 5. Height adjustment : Remove screws (2) securing bonnet hinge to the body. Position suitable shims at « a » to ensure the recess of bonnet in relation to front wings : R = 2 mm max. Fit and tighten screws (2). Transversal and longitudinal adjustment = Loosen hinge fixing screws (1) on bonnet. Adjust them in order to obtain a clearance between bonnet and wings : did -1

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
