818 Repair Manual (CX) | Page 381

Citroën Repair Manual
CX Vehicles, Volume I
N°818, February 1975
SECTION OVERVIEWBoot lid

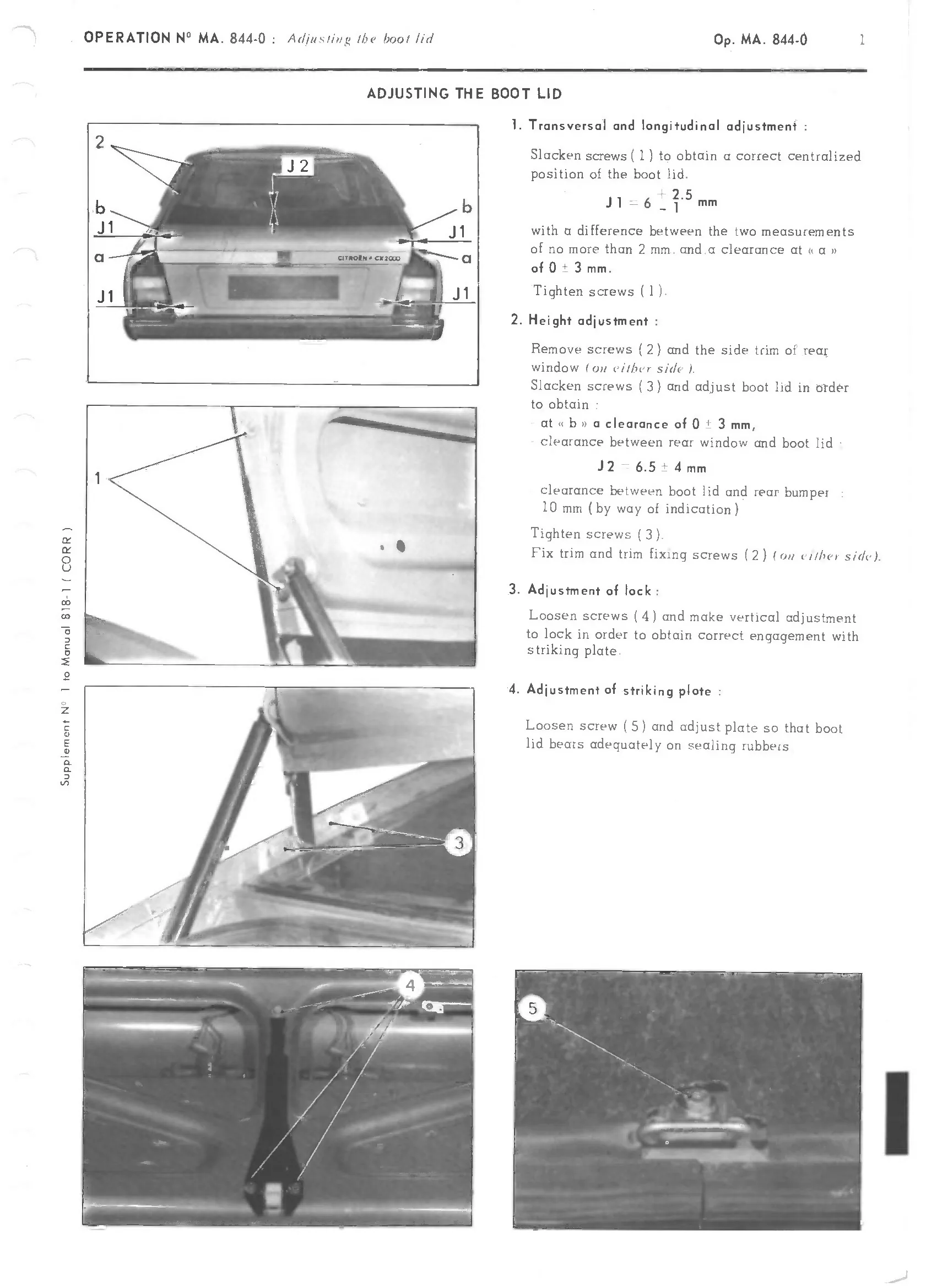

Boot lid, page 381 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.381
EXTRACTED TEXT — FOR REFERENCE ONLY

Supplement N° 1 to Manual 818-1 ( CORR ) Slacken screws (1) to obtain a correct centralized position of the boot lid. +2 J1=6._ 1 5 mm with a difference between the two measurements of no more than 2 mm. clearance at «a» of 0+ 3mm. Tighten screws (1). . Height adjustment : Remove screws {2} and the side trim of rear window either side }. Slacken screws (3} and adjust boot lid in order to obtain : at « b» a clearance of 0 + 3 mm,

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
