818 Repair Manual (CX) | Page 184

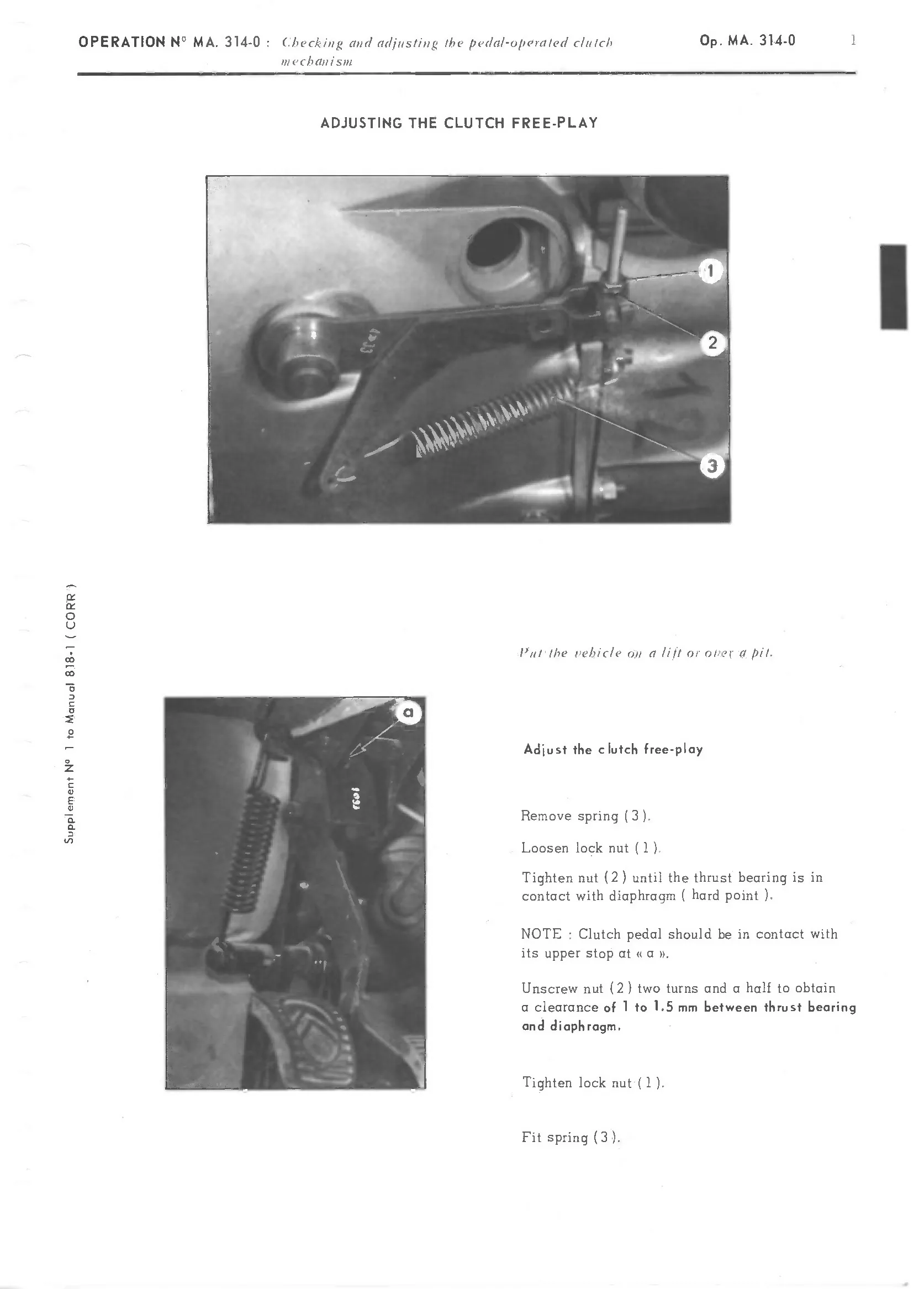

Supplement N° 1 to Manual 818-1 ( CORR) Put the on a lift or over a Adjust the clutch free-play Remove spring (3). Loosen lock nut (1) Tighten nut (2) until the thrust bearing is in contact with diaphragm ( hard point ). NOTE : Clutch pedal should be in contact with its upper stop at «a». Unscrew nut {2} two turns and a half to obtain a clearance of 1 to 1.5 mm between thrust bearing and diaphragm, Tighten lock nut (1). Fit spring (3).
