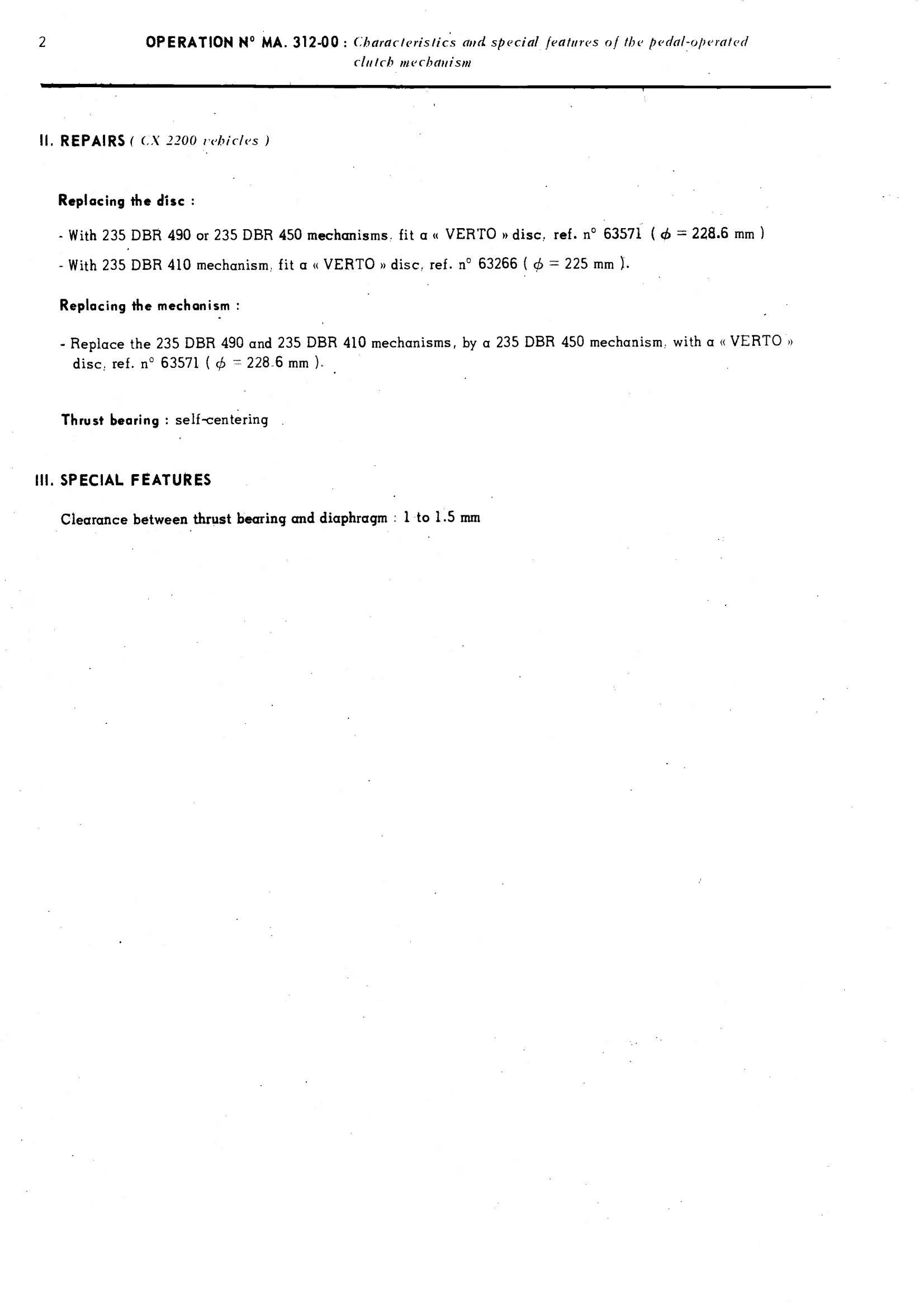

Clutch, page 183 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.183
EXTRACTED TEXT — FOR REFERENCE ONLY

Il, REPAIRS ( CX 2200 vehicles ) Replacing the disc : - With 235 DBR 490 or 235 DBR 450 mechanisms. fit a« VERTO » disc, ref. n° 63571 ( d = 228.6 mm ) - With 235 DBR 410 mechanism, fit a « VERTO » disc, ref. n° 63266 ( d = 225 mm ). Replacing the mechanism : - Replace the 235 DBR 490 and 235 DBR 410 mechanisms, by a 235 DBR 450 mechanism, with a « VERTO » disc, ref. n° 63571 (6 = 228.6 mm ). ; Thrust bearing : self-centering Wl, SPECIAL FEATURES Clearance between thrust bearing and diaphragm : 1 to 1.5 mm

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
