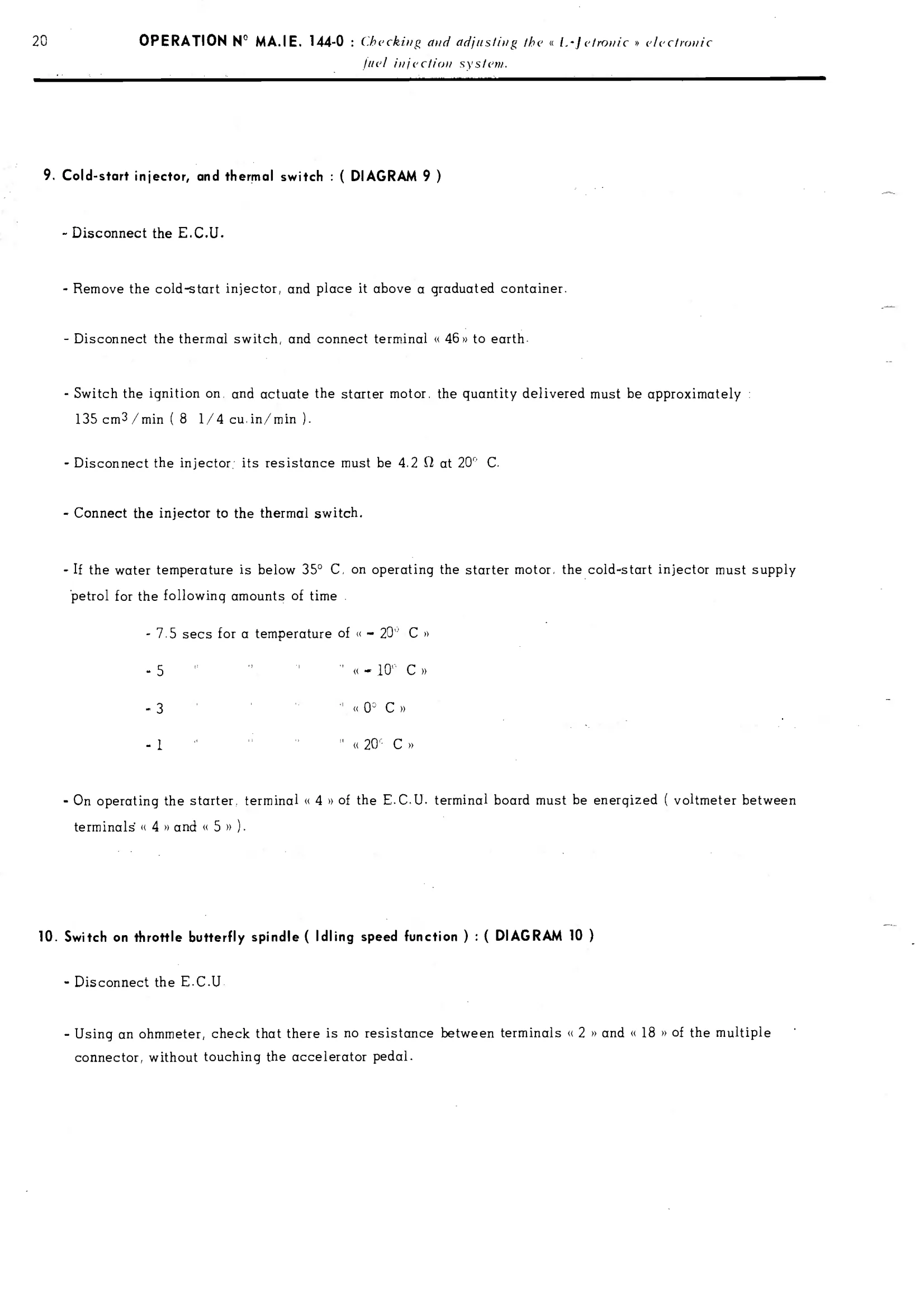

Check and adjust injection, page 140 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.140
EXTRACTED TEXT — FOR REFERENCE ONLY

9. Cold-start injector, and thermal switch : ( DIAGRAM 9 ) ~ Disconnect the E.C.U. - Remove the cold-start injector, and place it above a graduated container. - Disconnect the thermal switch, and connect terminal « 46» to earth. - Switch the ignition on. and actuate the starter motor. the quantity delivered must be approximately 135 cm3/min (8 1/4 ). - Disconnect the injector: its resistance must be 4.2 ( at 20° C.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
