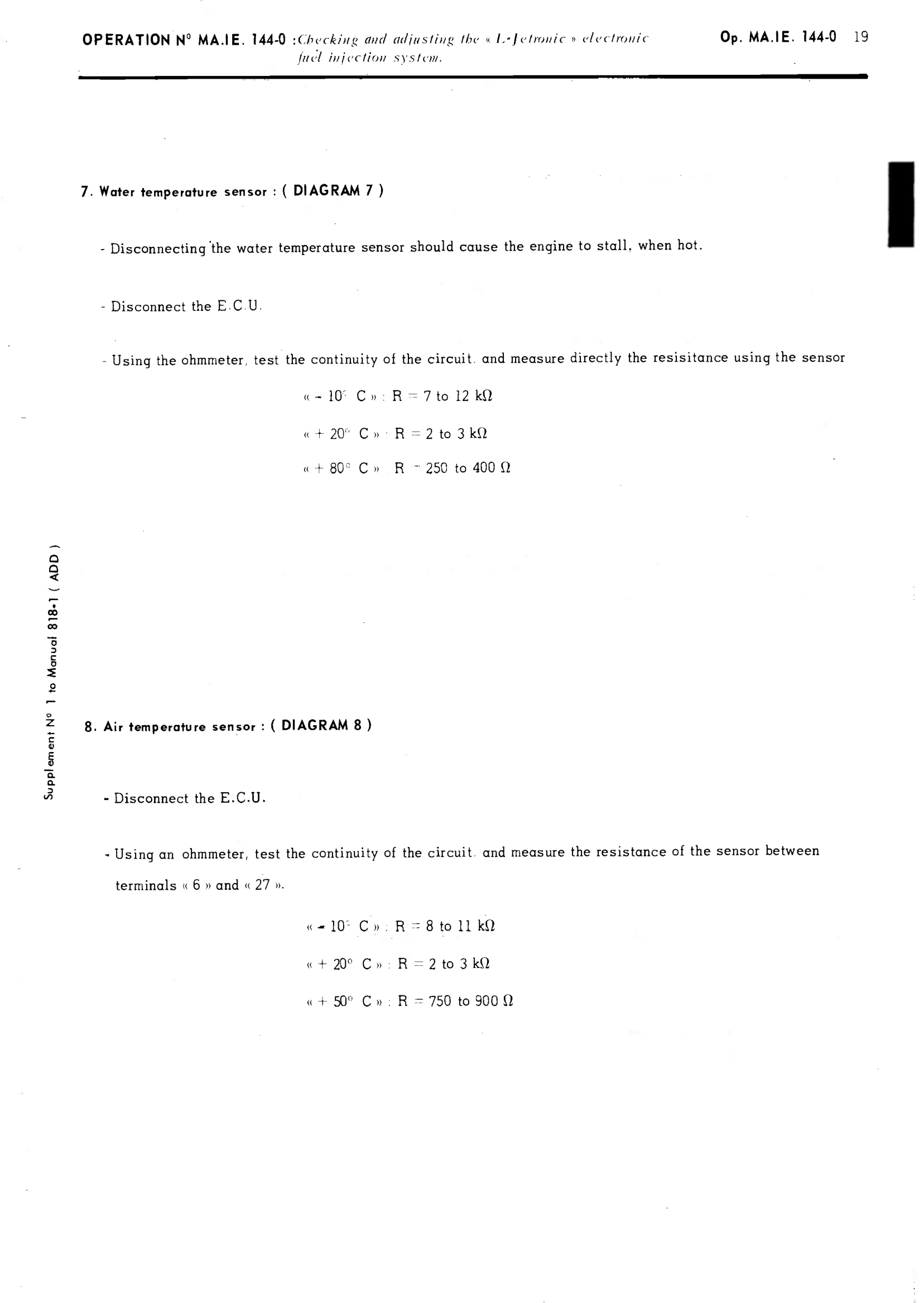

Check and adjust injection, page 139 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.139
EXTRACTED TEXT — FOR REFERENCE ONLY

Supplement N° 1 to Manual 818-1 ( ADD ) 7. Water temperature sensor : ( DIAGRAM 7 ) - Disconnecting the water temperature sensor should cause the engine to stall, when hot. - Disconnect the E.C.U. - Using the ohmmeter, test the continuity of the circuit. and measure directly the using the sensor «= 10° C»: R=7to 12 kQ «+ 20° C»: R=2 to 3kQ «+ 80° C» R ~ 250 to 400 0 8. Air temperature sensor : ( DIAGRAM 8 ) ~ Disconnect the E.C.U.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
