REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

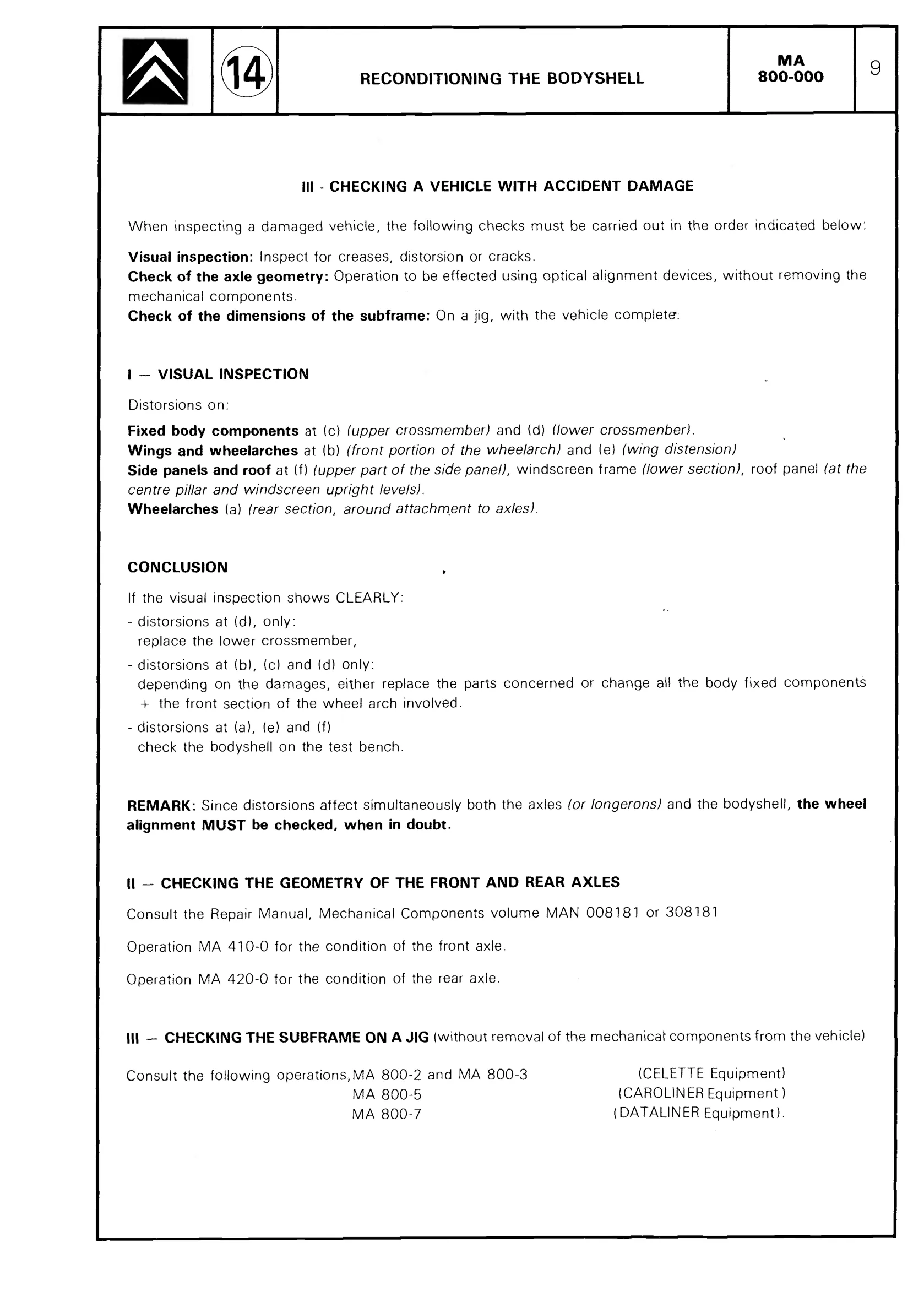

- CHECKING A VEHICLE WITH ACCIDENT DAMAGE When inspecting a damaged vehicle, the following checks must be carried out in the order indicated below: Visual inspection: Inspect for creases, or cracks. Check of the axle geometry: Operation to be effected using optical alignment devices, without removing the mechanical components. Check of the dimensions of the On a jig, with the vehicle complete | — VISUAL INSPECTION Distorsions on:
Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
