58531 Repair Manual (CX) | Page 504

Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWRemove/fit heater unit 7/85->

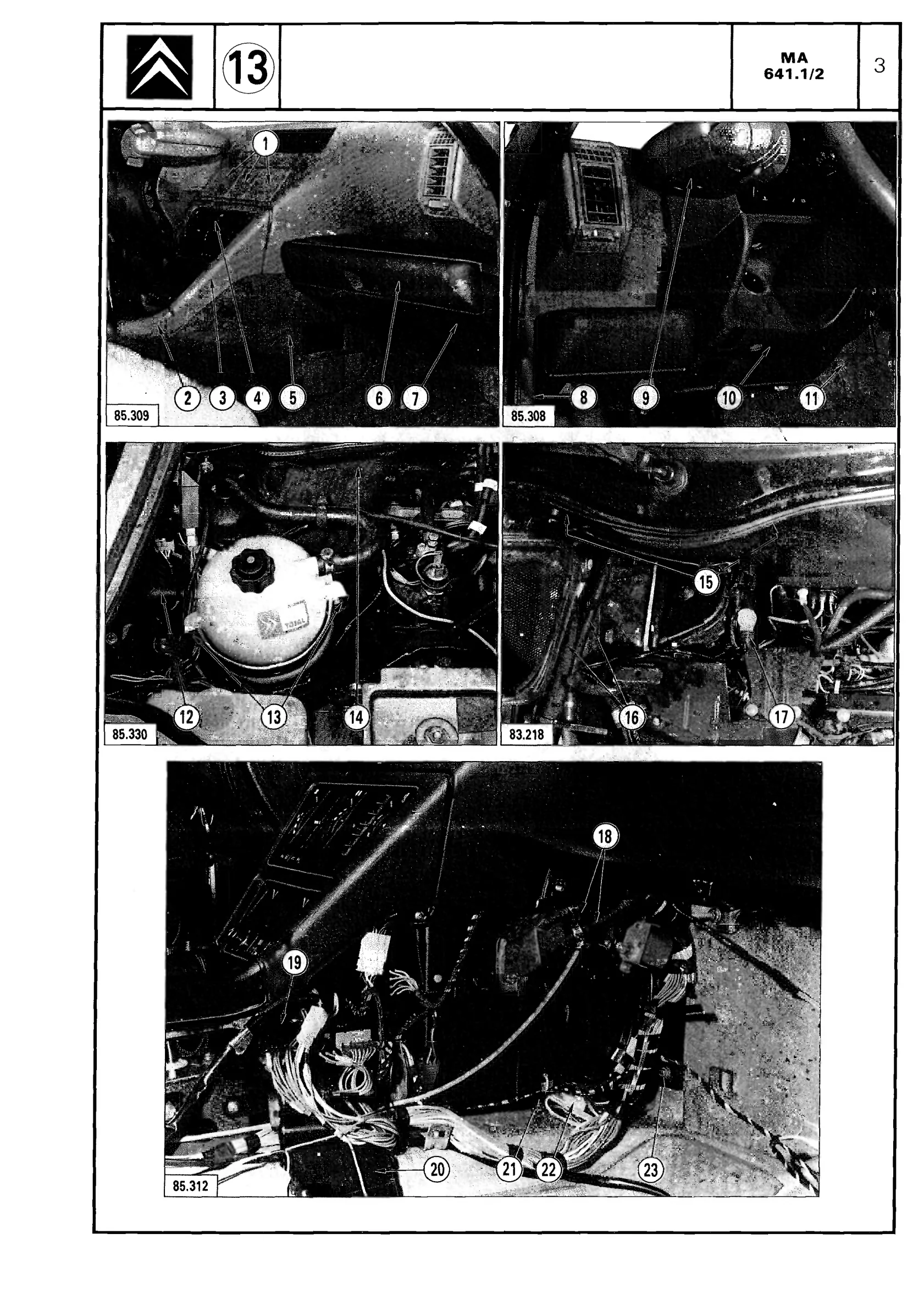

Remove/fit heater unit 7/85->, page 504 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.504
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.503)

— the steering lower panel, (10), — the switch panel fixing (9), — the 3 storage boxes (1), — the L/H dashboard fixing screw (8), . — the electrical unit support panel (19), — the rear seat duct (20). 4. Remove, from the engine compartment: — The water header tank fixing (13) to move it clear, — the ducting (12), — the securing (2 nuts and 1 bolt) for the air intake tower (14), — the 2 dashboard securing nuts (15) on the bulkhead.

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
