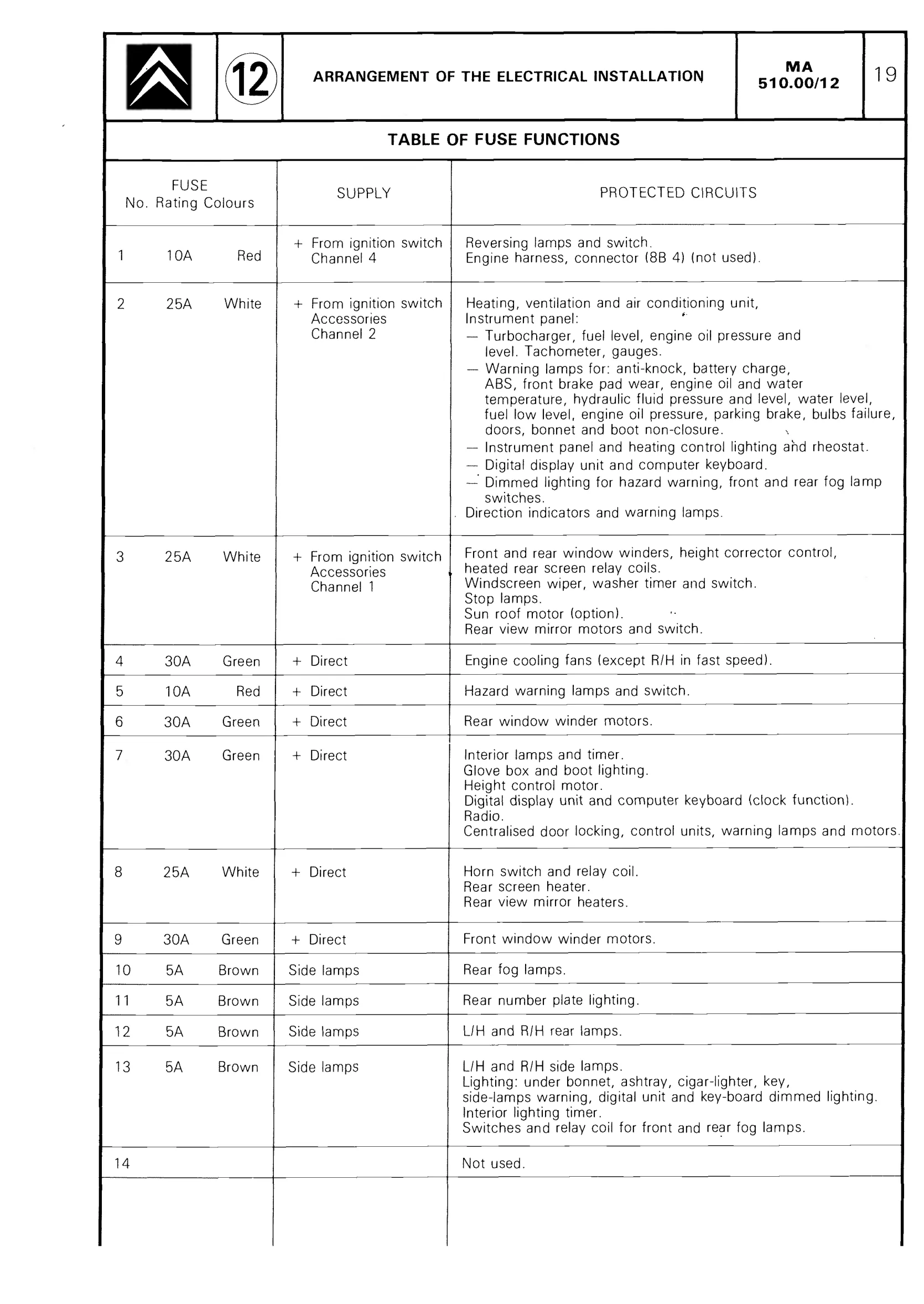

FUSE No. Rating Colours TABLE OF FUSE FUNCTIONS SUPPLY PROTECTED CIRCUITS 10A Red + From ignition switch Channel 4 Reversing lamps and switch. Engine harness, connector (8B 4) (not used). 25A White From ignition switch Accessories Channel 2 Heating, ventilation and air conditioning unit, Instrument panel: — Turbocharger, fuel level, engine oil pressure and level. Tachometer, gauges.
Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
