Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWRemove/refit front brake disc
Remove/refit front brake disc, page 430 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.430
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.429)

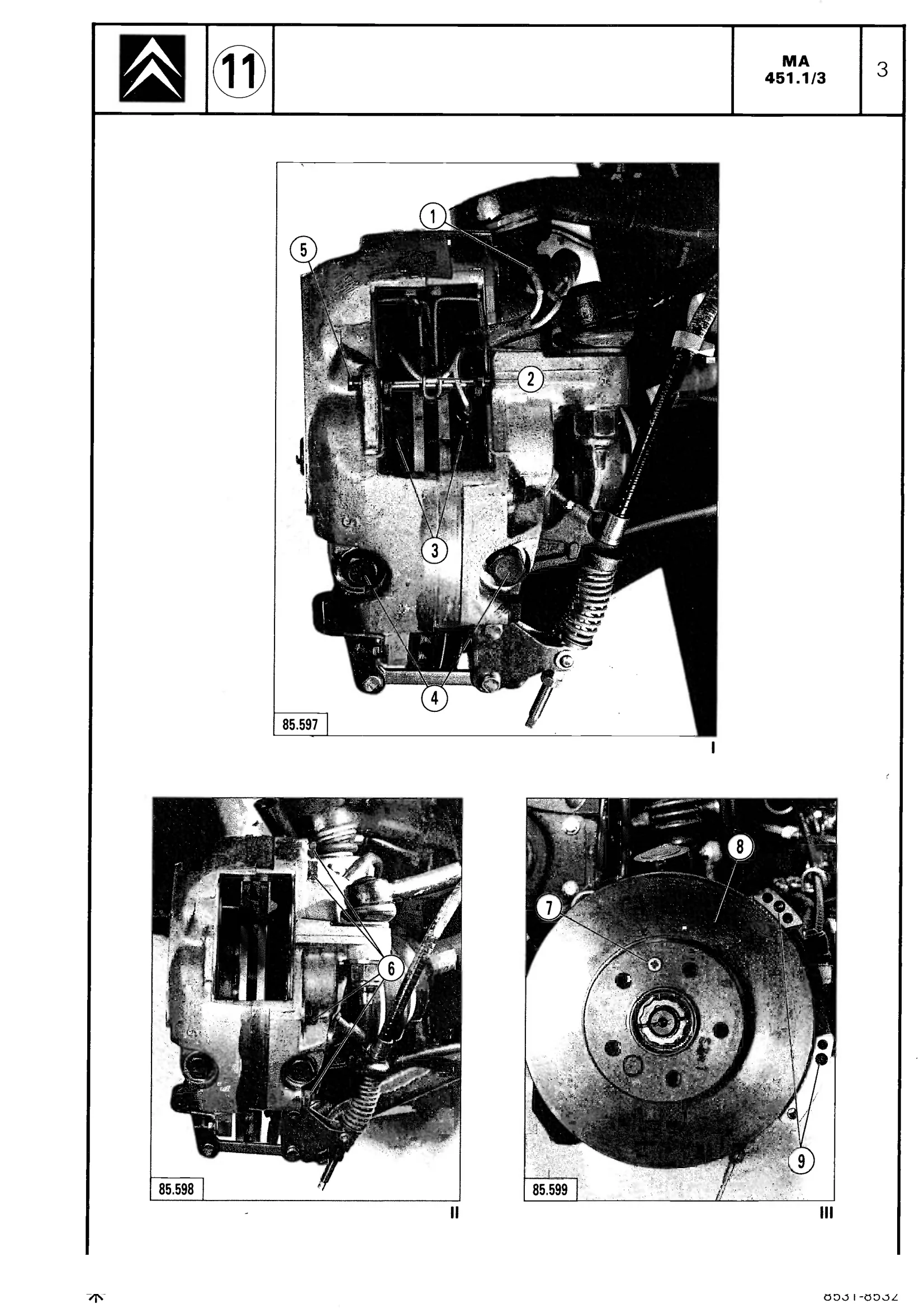

Uncouple the half-caliper from the swivel and tilt it. Remove, Fig. Ill : - screw (7), - disc (8). REFITTING Make sure that the parking brake internal pad is in Refit, Fig. il : - brake disc (8), - screw (7), tighten the screw, - NEW o-ring seals (9). Confirm that the parking brake external pad is in position. Recouple the Put screws (6) into place, Fig. Il. Tighten to 3.5 mdaN. Fit, Fig. | :

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
