REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

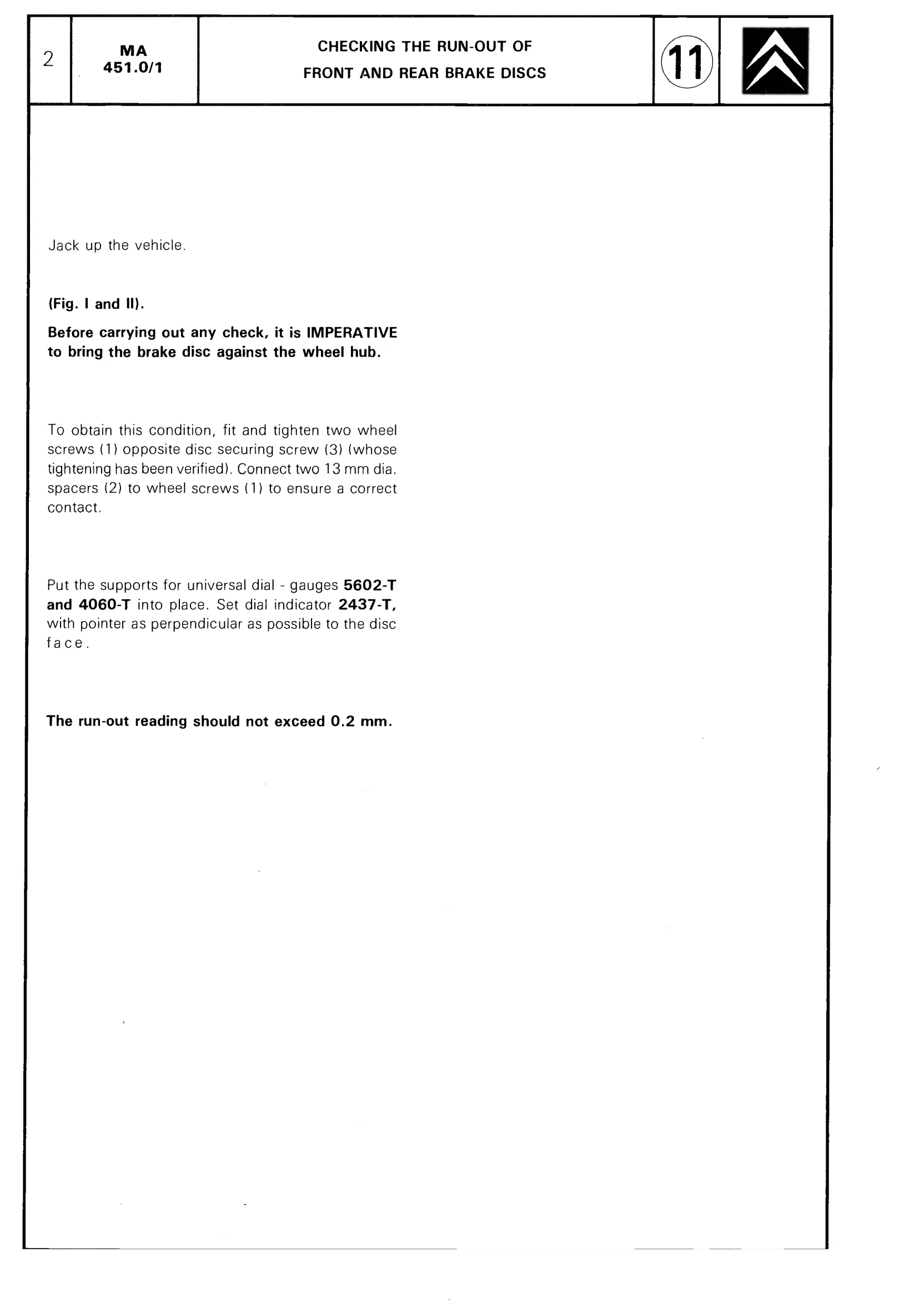

Jack up the vehicle. (Fig. | and Il). Before carrying out any check, it is IMPERATIVE to bring the brake disc against the wheel hub. To obtain this condition, fit and tighten two wheel screws (1) opposite disc securing screw (3) (whose tightening has been verified). Connect two 13 mm spacers (2) to wheel screws (1) to ensure a correct contact,
Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
