REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.359)

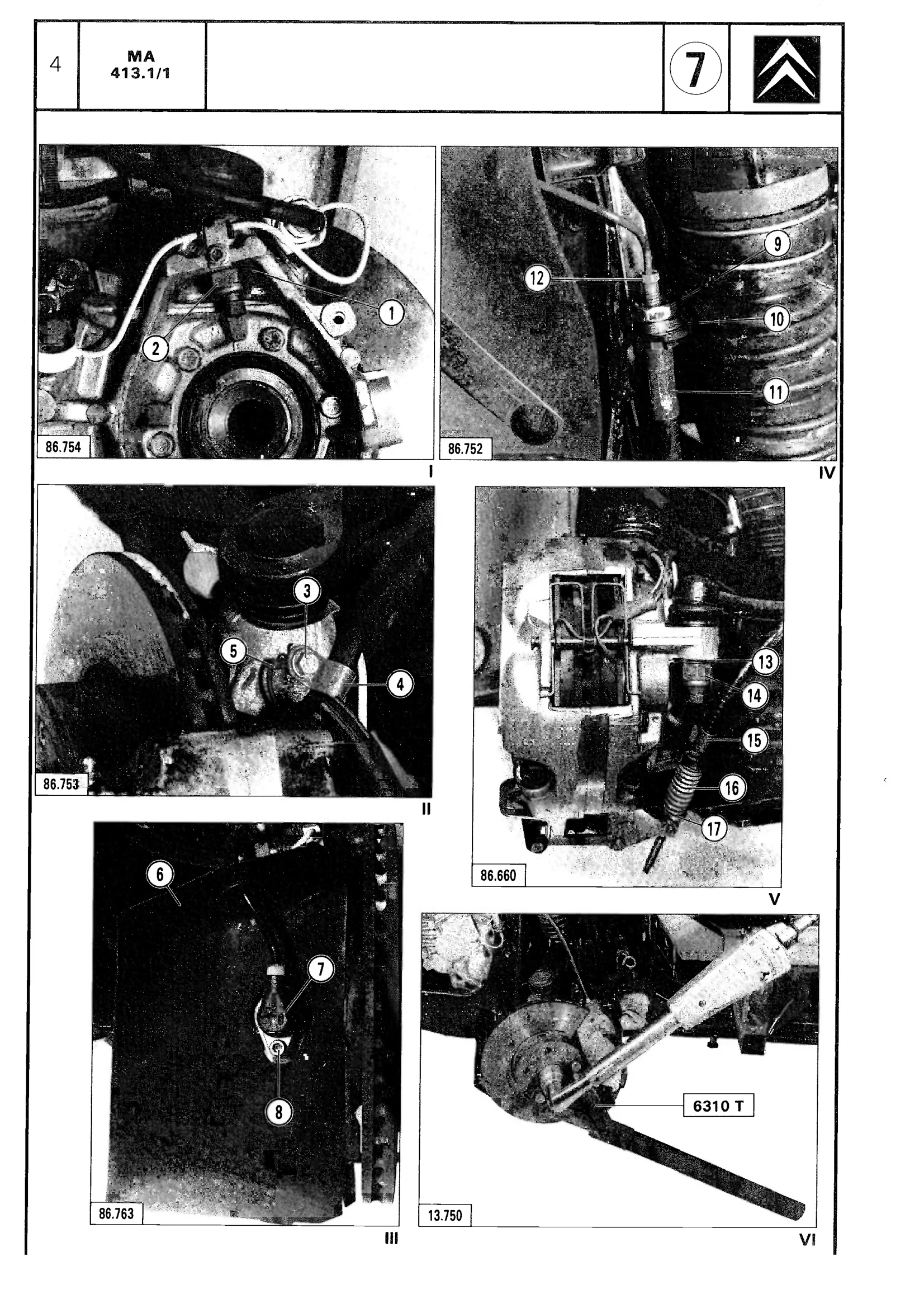

- electrical harness fixing bracket (4), - earth lead (5), - screw (3), - metal panel (6). ABS vehicles, Fig. Ill: Reinstall sensor (7) (spread MOBIL TEMP No. 1 grease over the outside of the sensor. Tighten screw (8) to 1 mdaN. Replace, Fig. IV: - flexible pipe (11) into its fixing bracket, - washer (10). Tighten nut (9) to 2.2 mdaN. Recouple: - Fig. 1V, connection (12) provided with a new seal. - Fig. V, the steering ball-joint. Refit:
Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
