58531 Repair Manual (CX) | Page 350

Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWRemove, fit lower wheel arm

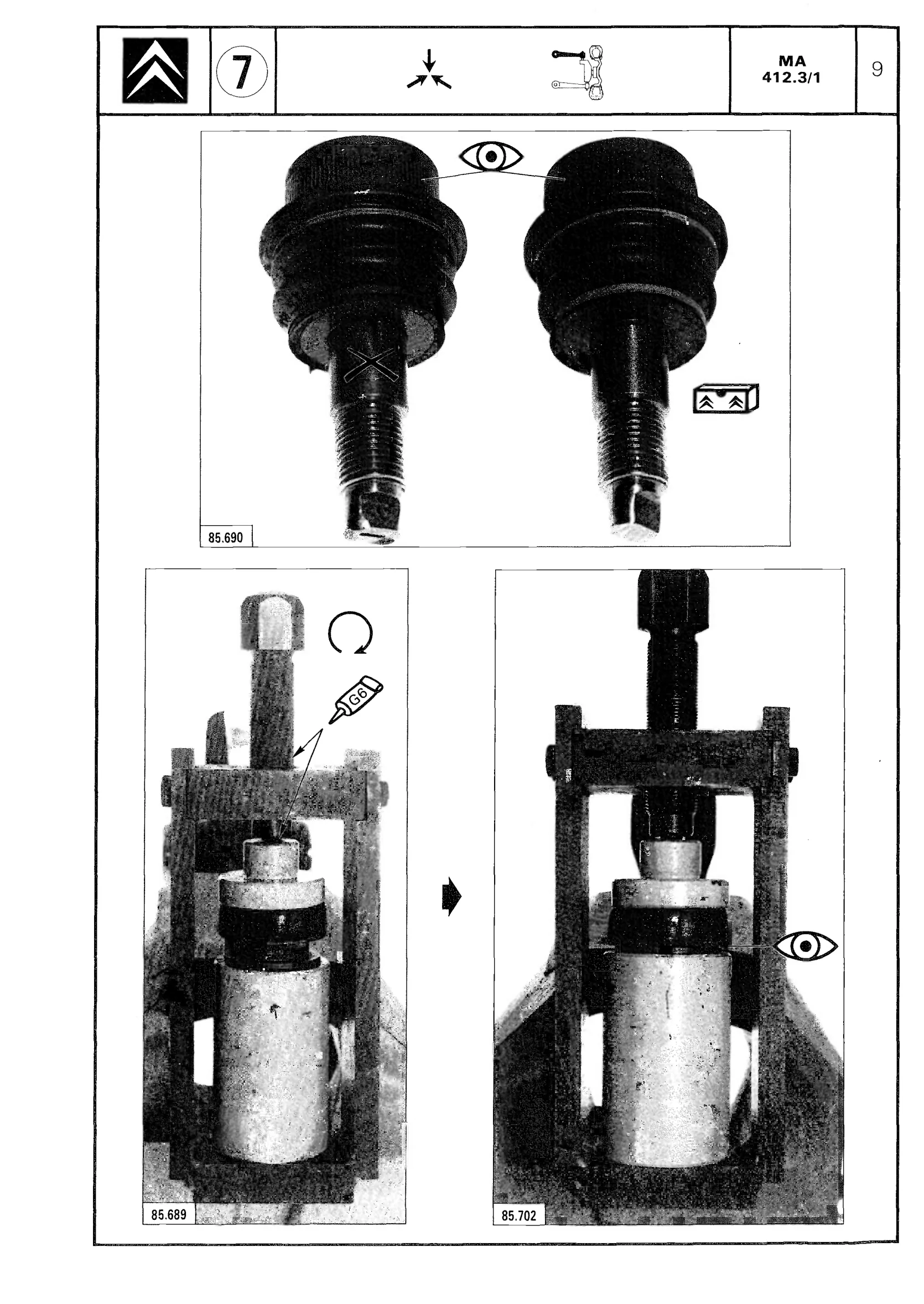

Remove, fit lower wheel arm, page 350 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.350
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.361)

Liberate the drive-shaft. Take out, Fig. Ill : - the screws, - the hub. REFITTING Introduce the wheel hub into the swivel. Position the screws previously fitted with lugged contact washers, Fig. Ill. Tighten to 2.7 mdaN. Insert the drive-shaft end into the wheel hub (grease the seal contact face). Couple up the lower ball-joint. Tighten the new NYSLTOP nut to 6 mdaN. (Wipe the ball-joint fixing and recess, do not use solvent)

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
