58531 Repair Manual (CX) | Page 345

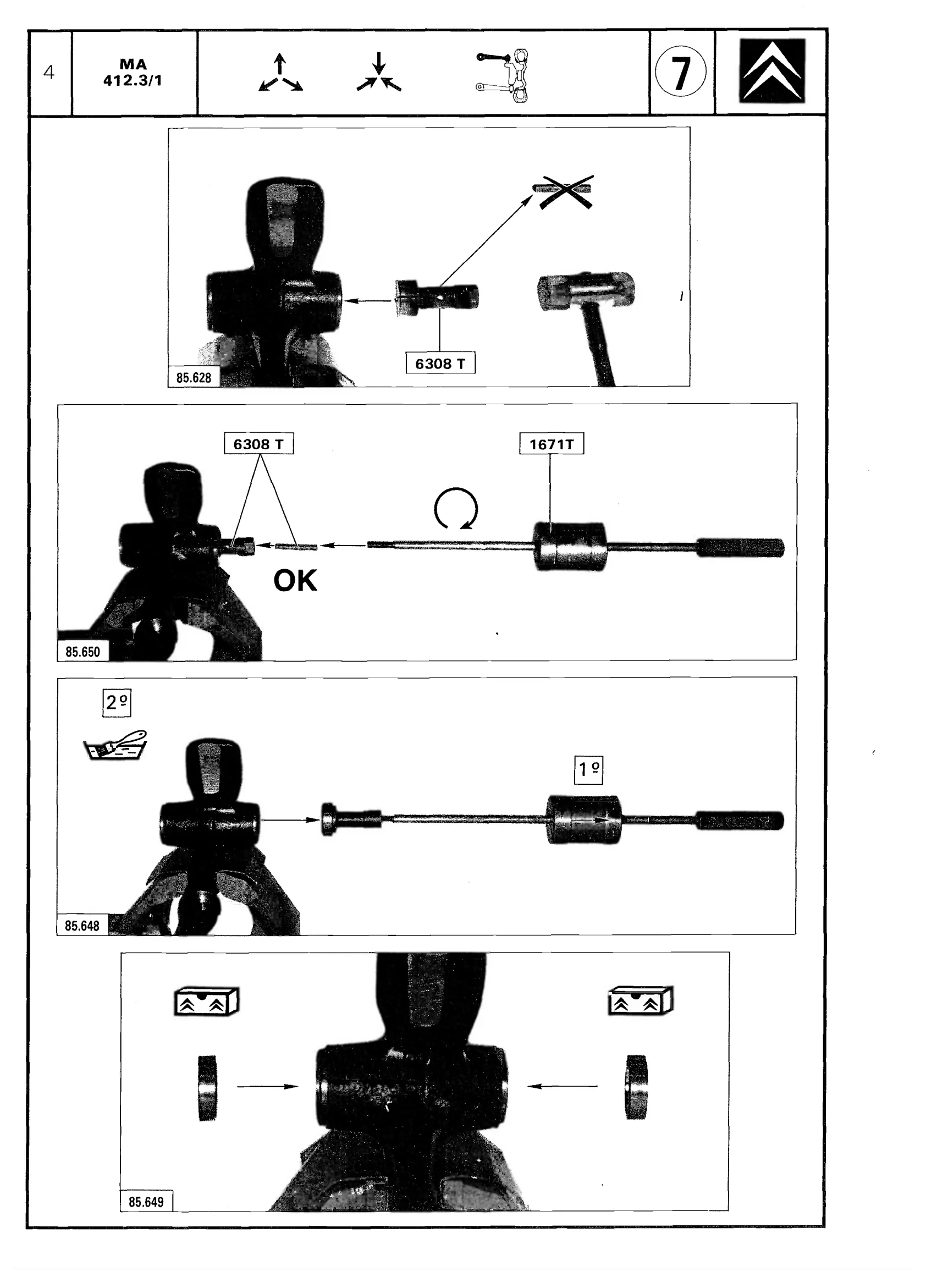

- spindle (2) with the help of inertia extractor 1671-T and adaptor 6306-T, Fig. Il. Mark adjustment shims (3) and (4) location, Fig. IV. Remove the wheel arm. REFITTING Note: the RH and LH arms are not alike. lf the wheel arm has been removed following an impact, it will be necessary to readjust the caster angle. Place the expander of too! 6312-T in the wheel arm, with screw A pointing rearwards, Fig V. Bring tubes (5) and (6) into contact, Fig. V. In order to do so: Fig. VI: - Grip the arm in a vice, - Tighten the expandable element by means of spanner B from tool 6312-T.
