SECTION OVERVIEWRemove, fit lower wheel arm

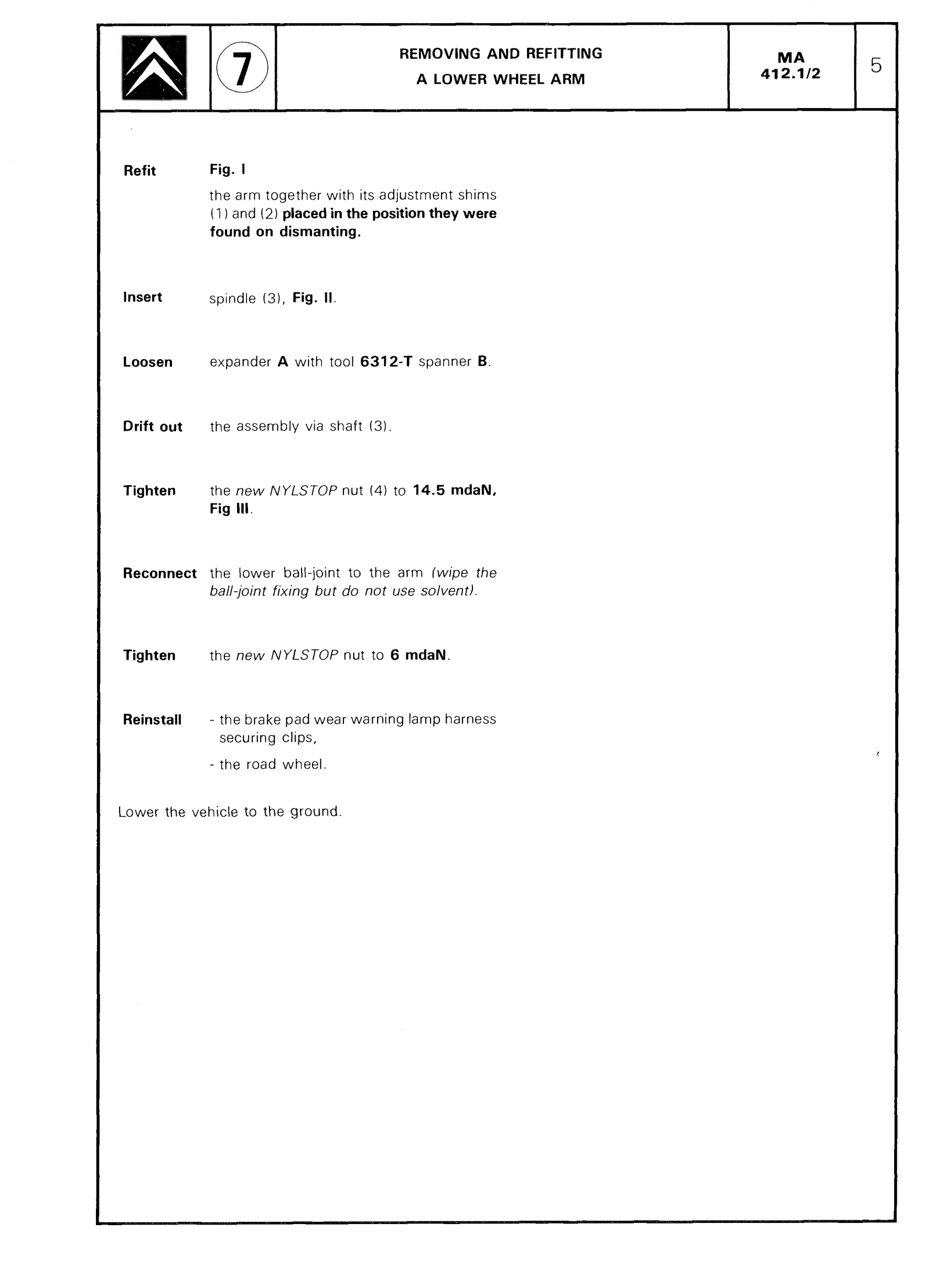

Remove, fit lower wheel arm, page 341 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.341
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

Insert Loosen Drift out Tighten Reconnect Tighten Reinstall Fig. | the arm together with its adjustment shims (1) and (2) placed in the position they were found on spindle (3), Fig. Wl. expander A with too! 6312-T spanner B. the assembly via shaft (3). the new NYLSTOP nut (4) to 14.5 mdaN, Fig Ill the lower ball-joint to the arm (wipe the ball-joint fixing but do not use solvent). the new NYLSTOP nut to 6 mdaN. - the brake pad wear warning lamp harness securing Clips, - the road wheel. Lower the vehicle to the ground.

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
