REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

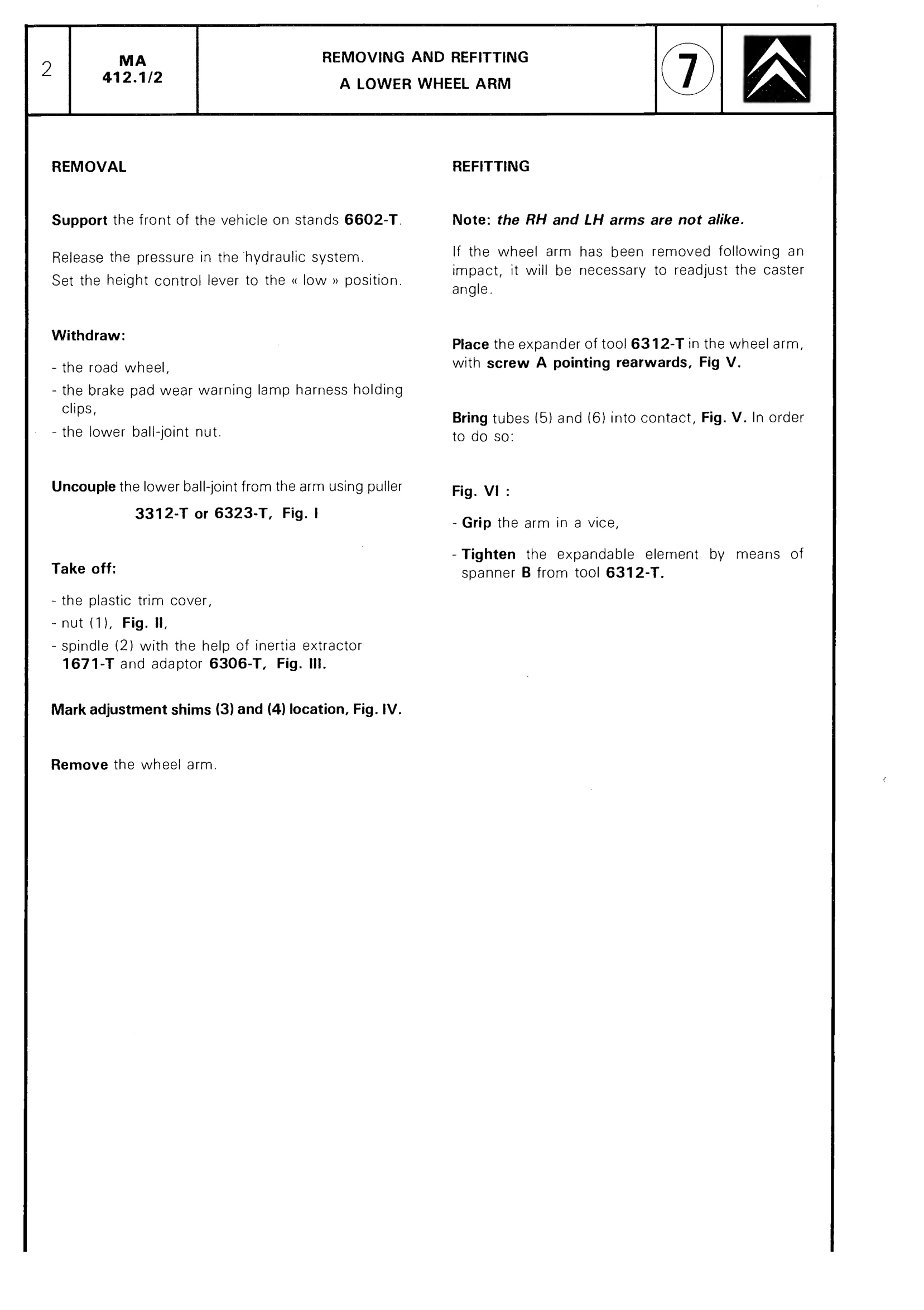

REMOVAL Support the front of the vehicle on stands 6602-T. Release the pressure in the hydraulic system. Set the height control lever to the « low » position. Withdraw: - the road wheel, - the brake pad wear warning lamp harness holding clips, - the lower ball-joint nut. Uncouple the lower ball-joint from the arm using puller 3312-T or 6323-T, Fig. | Take off: - the plastic trim cover, - nut (1), Fig. Ul,
Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
