Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWDrive shafts

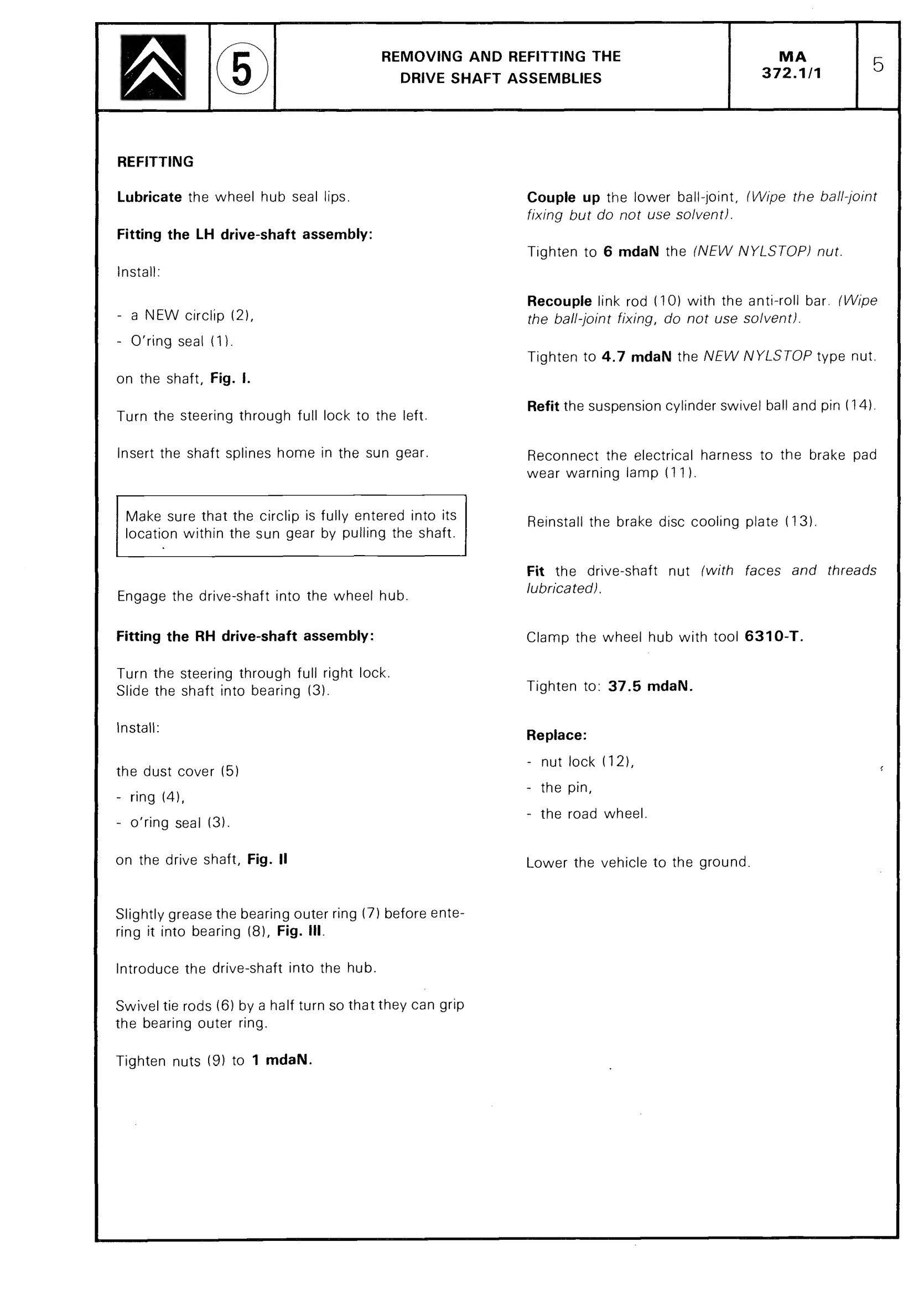

Drive shafts, page 304 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.304
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

REFITTING Lubricate the wheel hub seal lips. Fitting the LH drive-shaft assembly: Install: - a NEW (2), - O’ring seal (1). on the shaft, Fig. 1. Turn the steering through full lock to the left. Insert the shaft splines home in the sun gear. Make sure that the is fully entered into its location within the sun gear by pulling the shaft. Engage the drive-shaft into the wheel hub. Fitting the RH drive-shaft assembly:

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
