REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

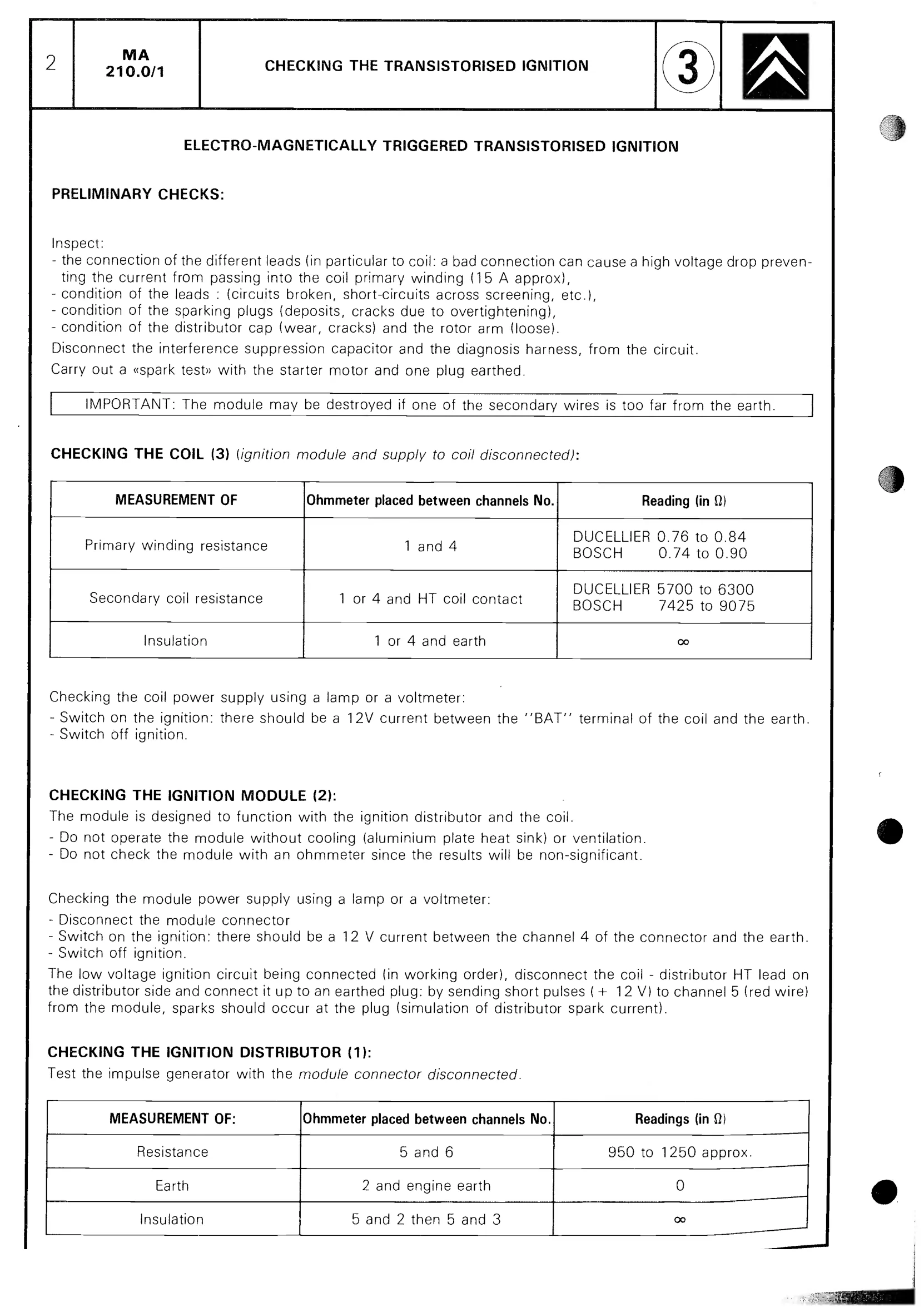

ELECTRO-MAGNETICALLY TRIGGERED TRANSISTORISED IGNITION PRELIMINARY CHECKS: Inspect: - the connection of the different leads (in particular to coil: a bad connection can cause a high voltage drop ting the current from passing into the coil primary winding (15 A approx), - condition of the leads : (circuits broken, short-circuits across screening, - condition of the sparking plugs (deposits, cracks due to
Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
