Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWChecking the petrol supply

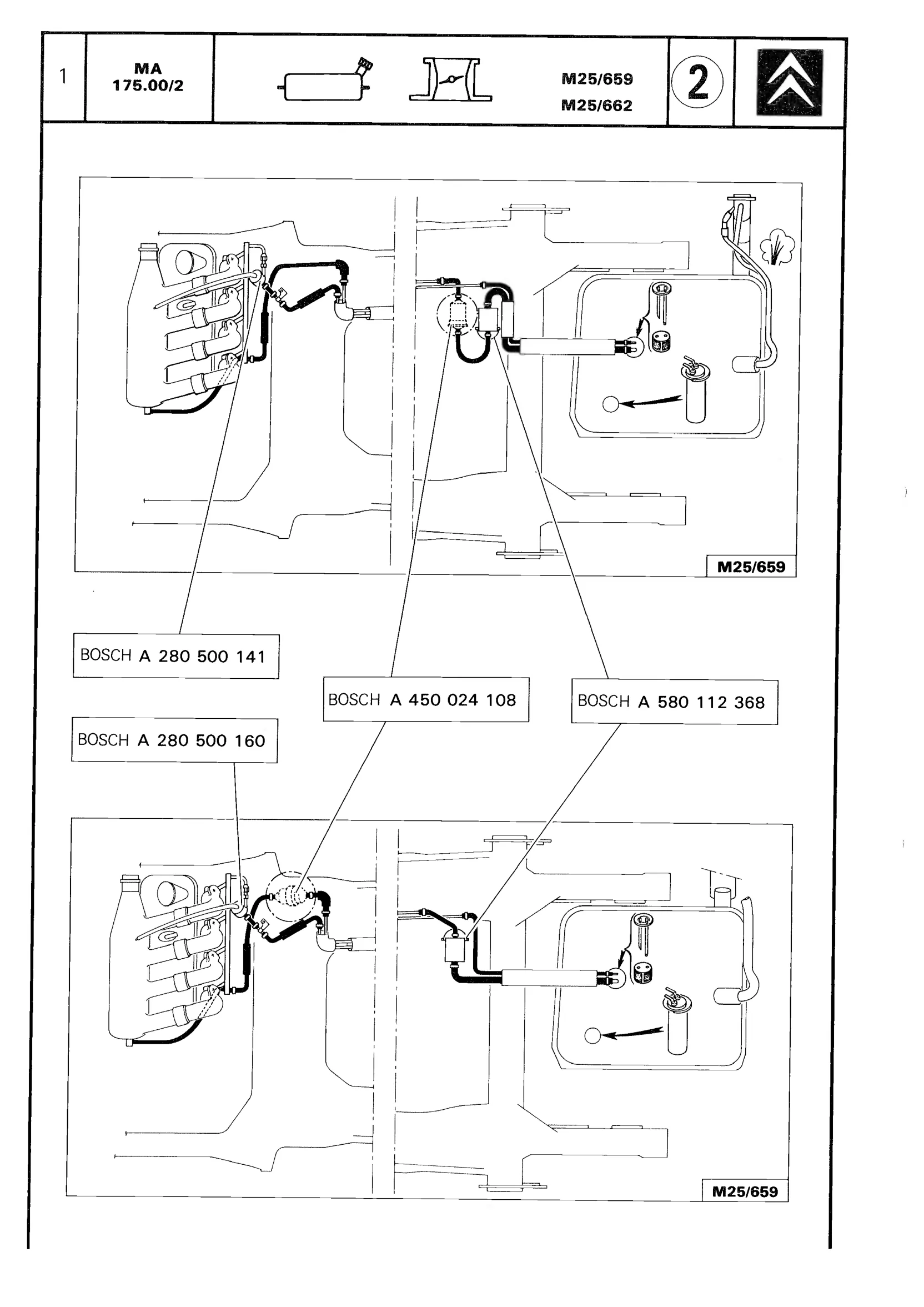

Checking the petrol supply, page 227 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.227
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.222)

This bi-metal type thermostat, is subjected to the inlet air temperature. It controls the opening of valves allowing passage for a depression towards the capsule This depression is picked up by a union having a calibrated orifice, fitted to the pipe connecting the oil breather to the intake manifold of the and by a T-shaped union situated near the base plate, so as to have an action over the engine load.

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
