Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWRemove and refit diesel pump

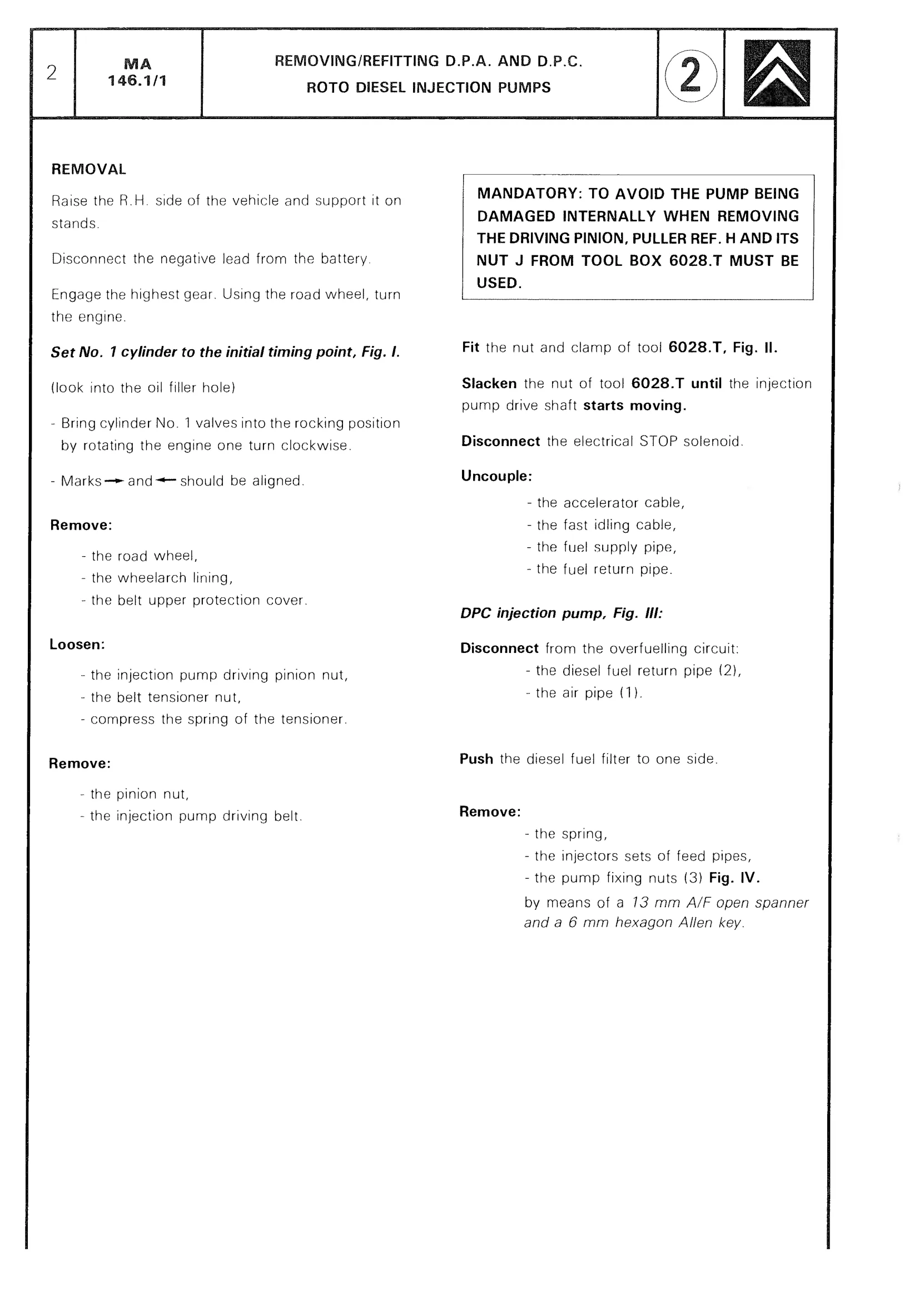

Remove and refit diesel pump, page 216 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.216
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

REMOVAL Raise the R.H. side of the vehicle and support it on stands Disconnect the negative lead from the battery Engage the highest gear. Using the road wheel, turn the engine. Set No. 1 cylinder to the initial timing point, Fig. 1. (look into the oil filler hole) - Bring cylinder No. 1 valves into the rocking position by rotating the engine one turn clockwise. - Marks —* and~— should be aligned Remove:

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
