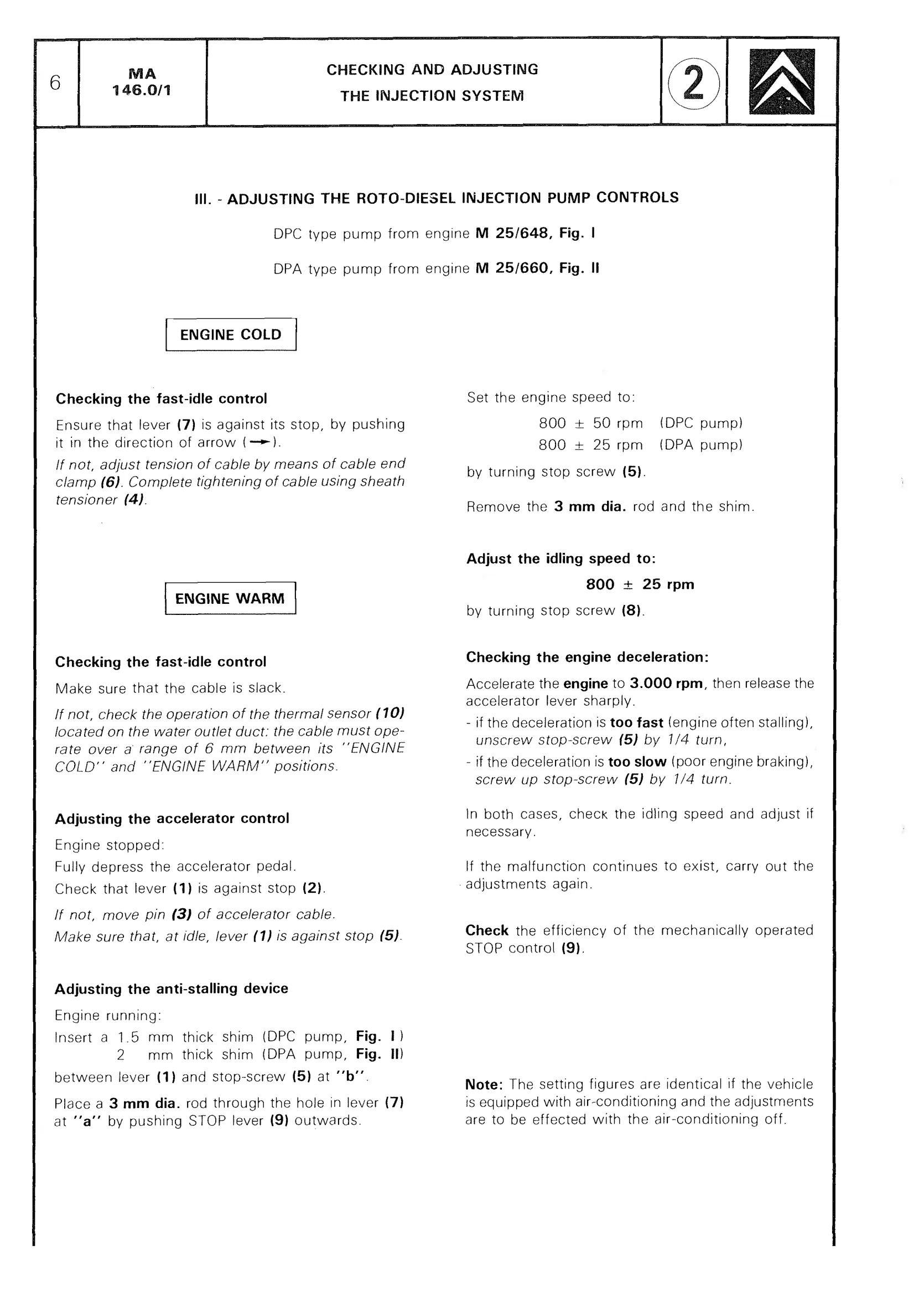

Diesel injection system, page 213 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.213
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

ill. - ADJUSTING THE ROTO-DIESEL INJECTION PUMP CONTROLS DPC type pump from engine M 25/648, Fig. | DPA type pump from engine M 25/660, Fig. Il ENGINE COLD Checking the fast-idle control Ensure that lever (7) is against its stop, by pushing it in the direction of arrow (—>). if not, adjust tension of cable by means of cable end clamp (6). Complete tightening of cable using sheath (4).

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
