Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWCarburettor specification

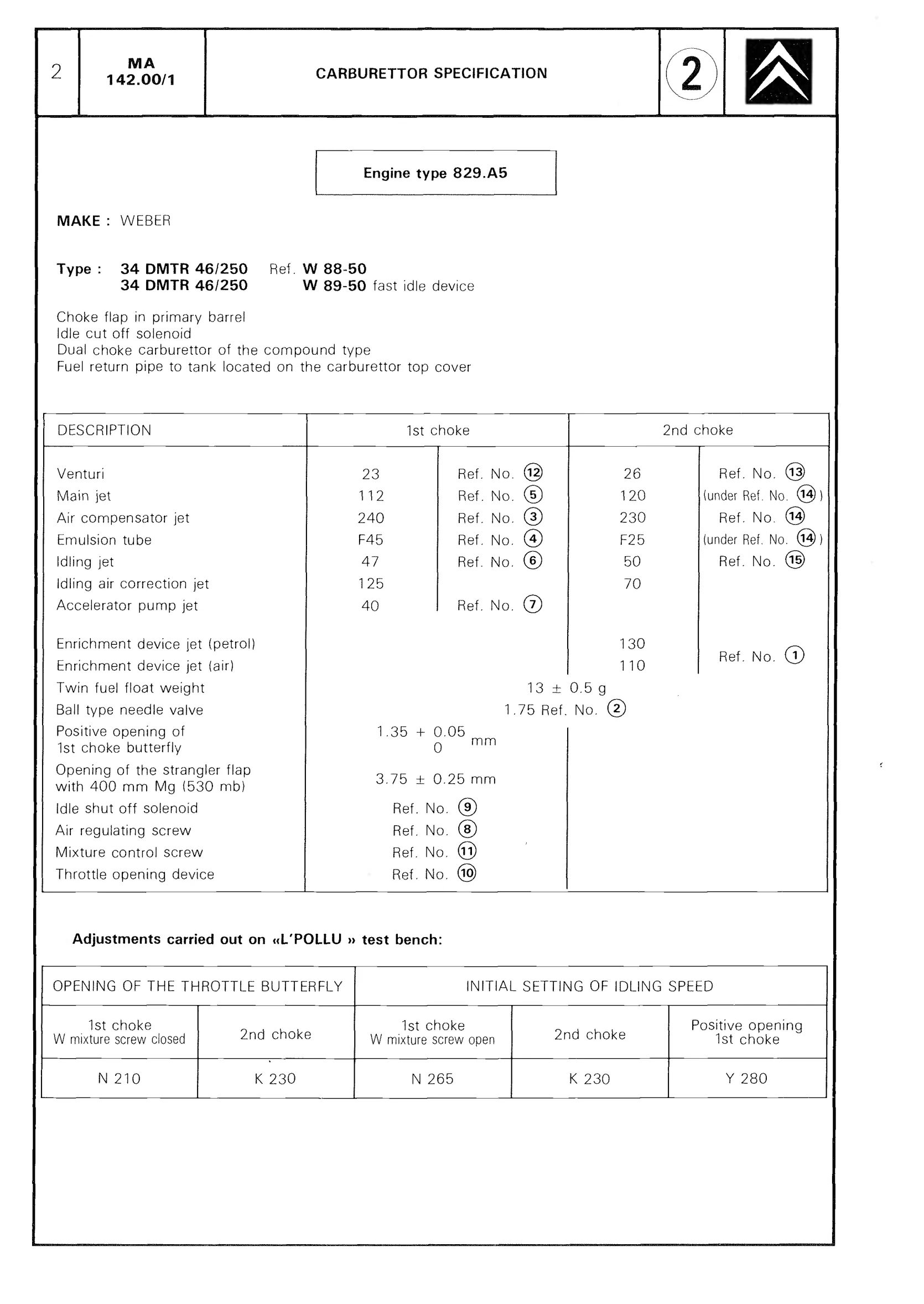

Carburettor specification, page 160 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.160
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

Engine type 829.A5 MAKE : WEBER Type: 34 DMTR 46/250 _ Ref. W 88-50 34 DMTR 46/250 W 89-50 fast idle device Choke flap in primary barrel Idle cut off solenoid Dual choke of the compound type Fuel return pipe to tank located on the top cover DESCRIPTION Ist choke 2nd choke Venturi Ref. Main jet Ref. Air compensator jet Ref. Emulsion tube 5 Ref. Idling jet Ref. Idling air correction jet Accelerator pump jet Ref.

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
