SECTION OVERVIEWReplace timing belt

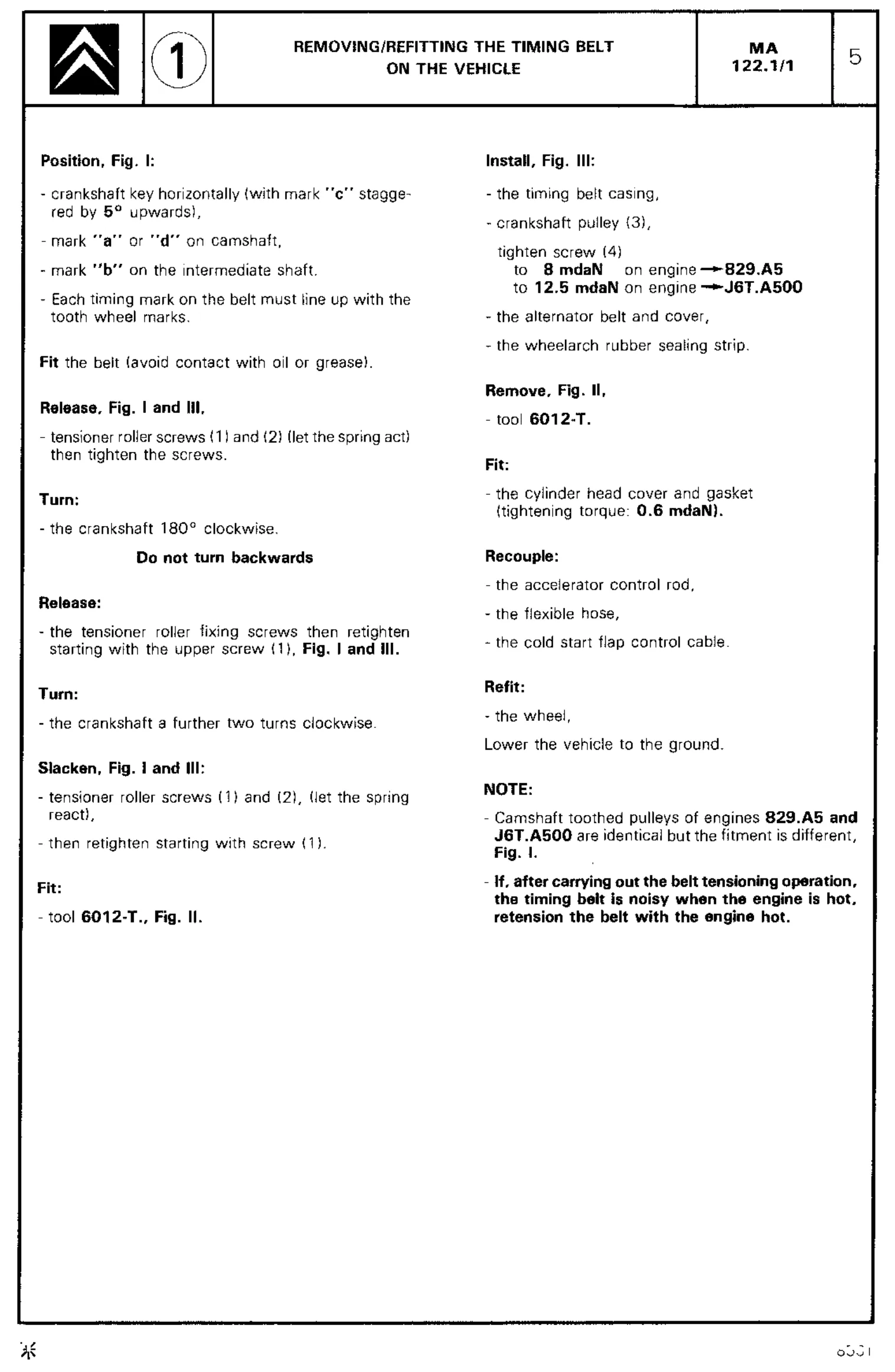

Replace timing belt, page 111 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.111
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

Position, Fig. I: - crankshaft key horizontally (with mark "'c"" red by 5° upwards}, -mark “a or ""d’” on camshaft, - mark '’b’’ on the intermediate shaft. ~ Each timing mark on the belt must line up with the tooth wheel marks. Fit the (avoid contact with oil or grease). Release, Fig. | and - roller screws (1) and (2) (let the spring act) then tighten the screws. Turn: - the crankshaft 180° clockwise. Do not turn backwards Release:

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
