Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWReplace timing belt

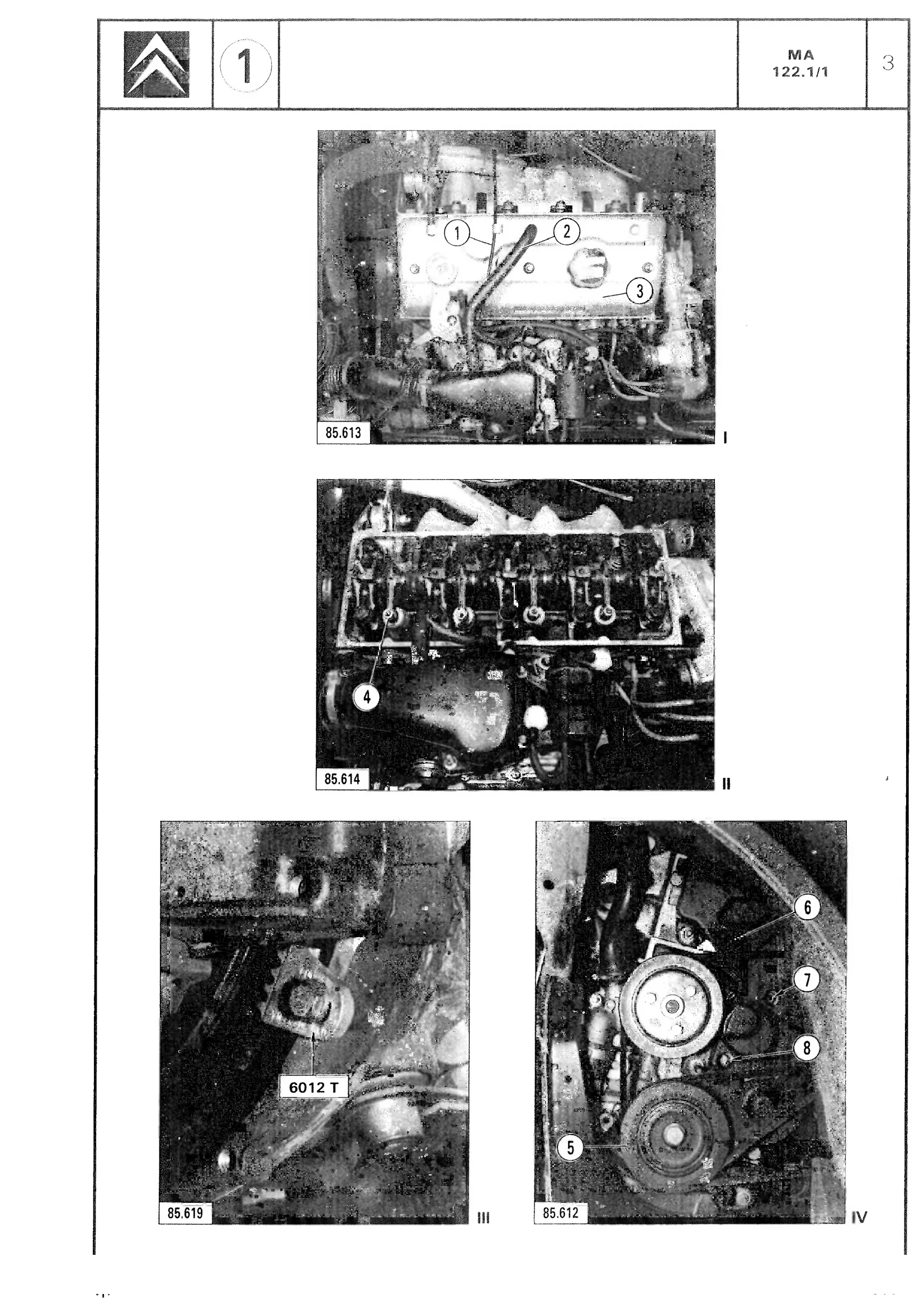

Replace timing belt, page 109 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.109
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.108)

- the alternator belt and housing, crankshaft pulley (5), - timing belt casing (6), - too! 6012-T, Fig. Ill Slacken, Fig. IV, the two screws (7) and (8) securing the automatic by a half turn, Compress the spring and screws (7) and (8). Remove: - the timing belt REFITTING NOTE: - Crankshaft rotation, two possible methods a) Engage the highest gear and turn the crank- shaft by means of the road wheel or the whee! hub

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
