Citroën Repair Manual
CX Vehicles, Mechanical Components 1
N°058531, September 1988
SECTION OVERVIEWCheck valve timing / Recommended tools

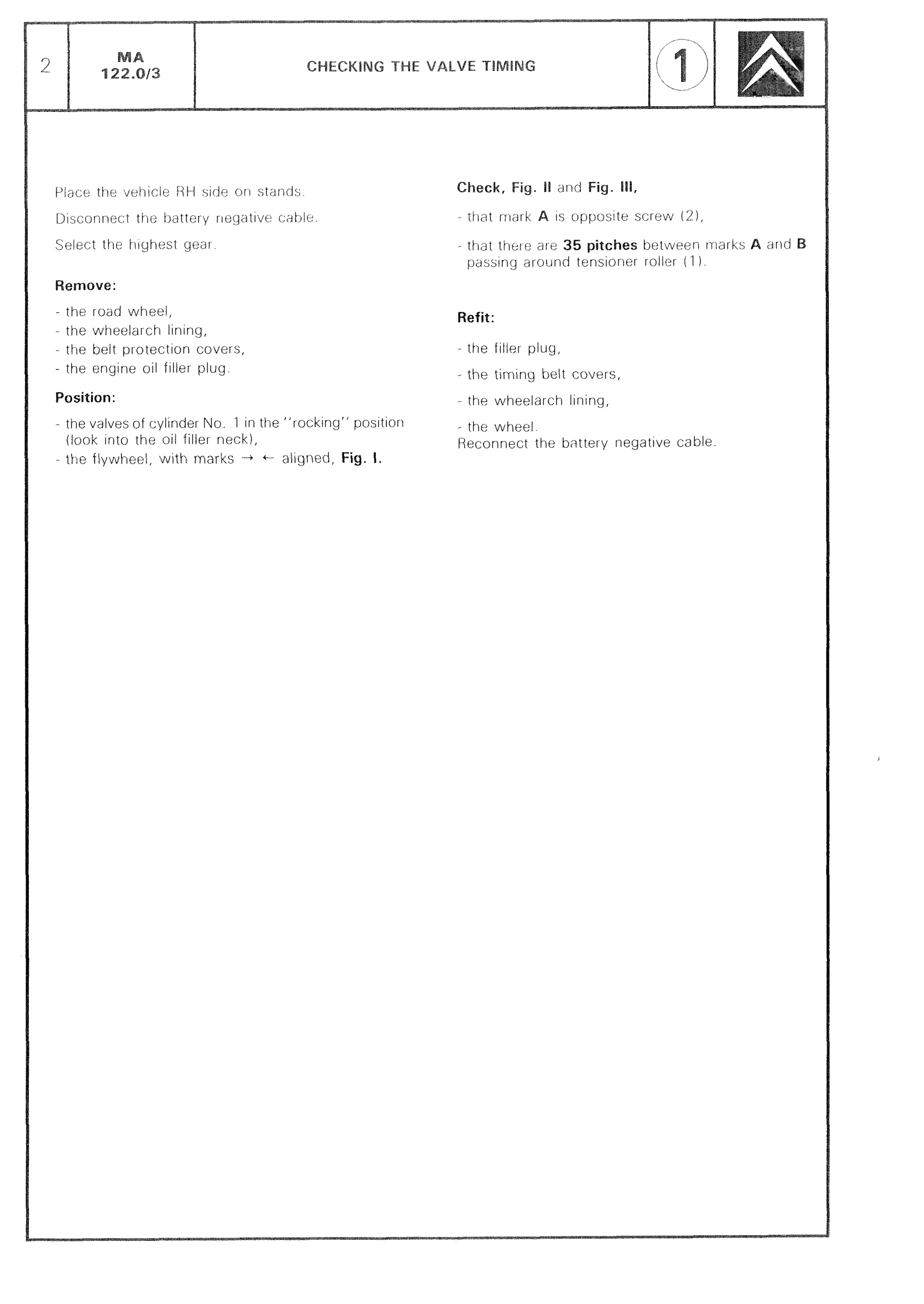

Check valve timing / Recommended tools, page 105 of 611 — CX Repair Manual — Mechanical Components 1
Page ↔ Forum
Start a discussion
Find related SP-6
58531 · p.105
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

Place the vehicle RH side on stands Disconnect the battery negative cable. Select the highest gear Remove: - the road wheel, - the lining, - the belt protection covers, - the engine oil filler plug Position: - the valves of cylinder No. 1 in the ‘'rocking”’ position (look into the oil filler neck), - the flywheel, with marks > « aligned, Fig. 1. Check, Fig. Ht and Fig. HL, - that mark A is opposite screw (2),

Vehicle Application: Citroën CX 20 · CX 22 · CX 25 · September 1988
