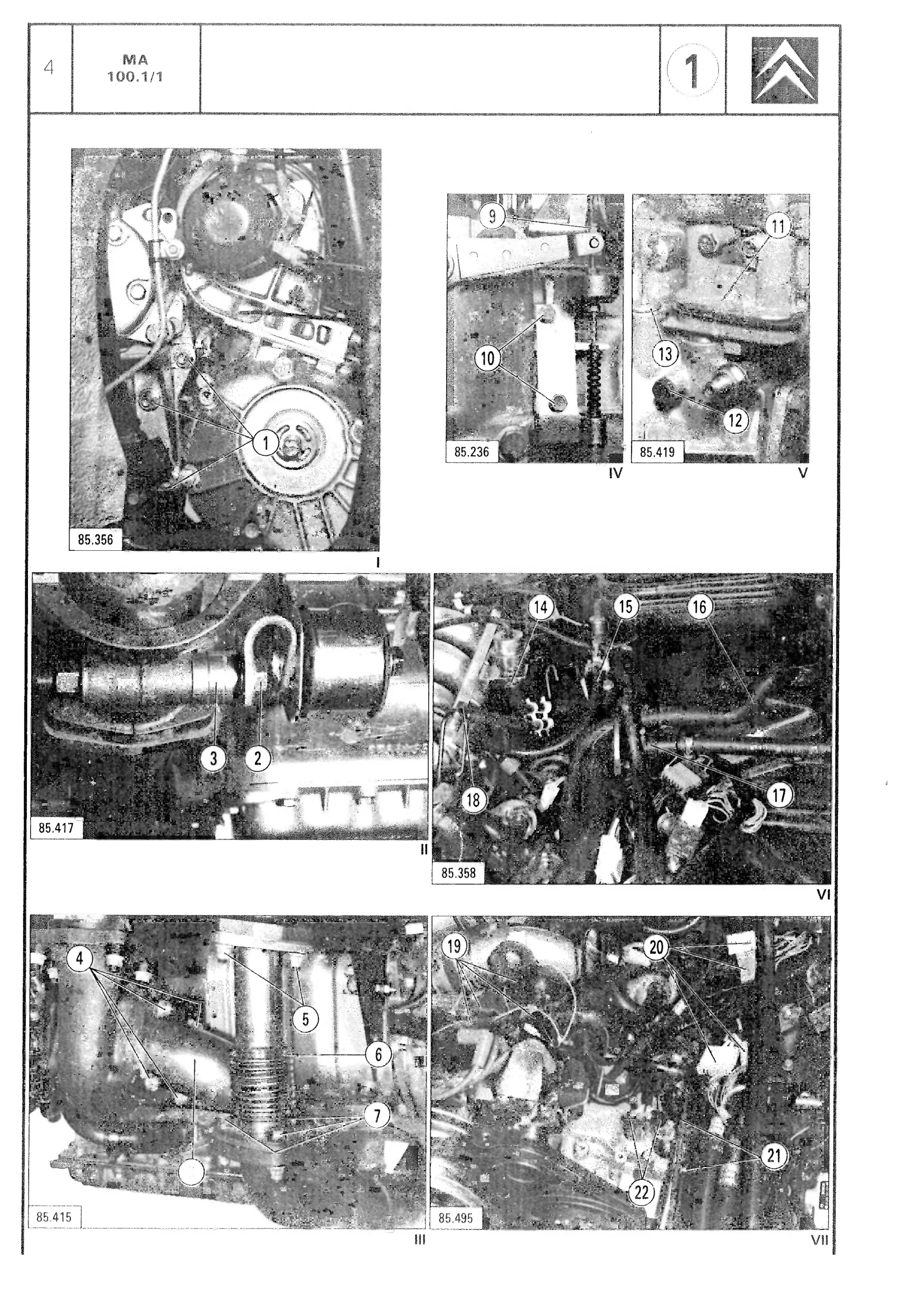

Uncouple the clutch control, Fig. IV Remove: - adjusting nuts (9), - Clutch control support screws (10). Uncouple the power take off with double outlet, Fig. V. Fully loosen screw (12), then it by two turns to prevent the speedometer drive guide from being pushed out Disengage the twin outlet power take off (11). Remove oil gauge (13). Uncouple, Fig. V: - heater hoses (16) and (17), - fast idle air duct (15), - petrol supply pipe (18), - petrol return pipe (14). Disconnect, Fig. VII: - connectors (20), - sensors (22), - coils and suppressors (19), - gear shift link rods (21).
