REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

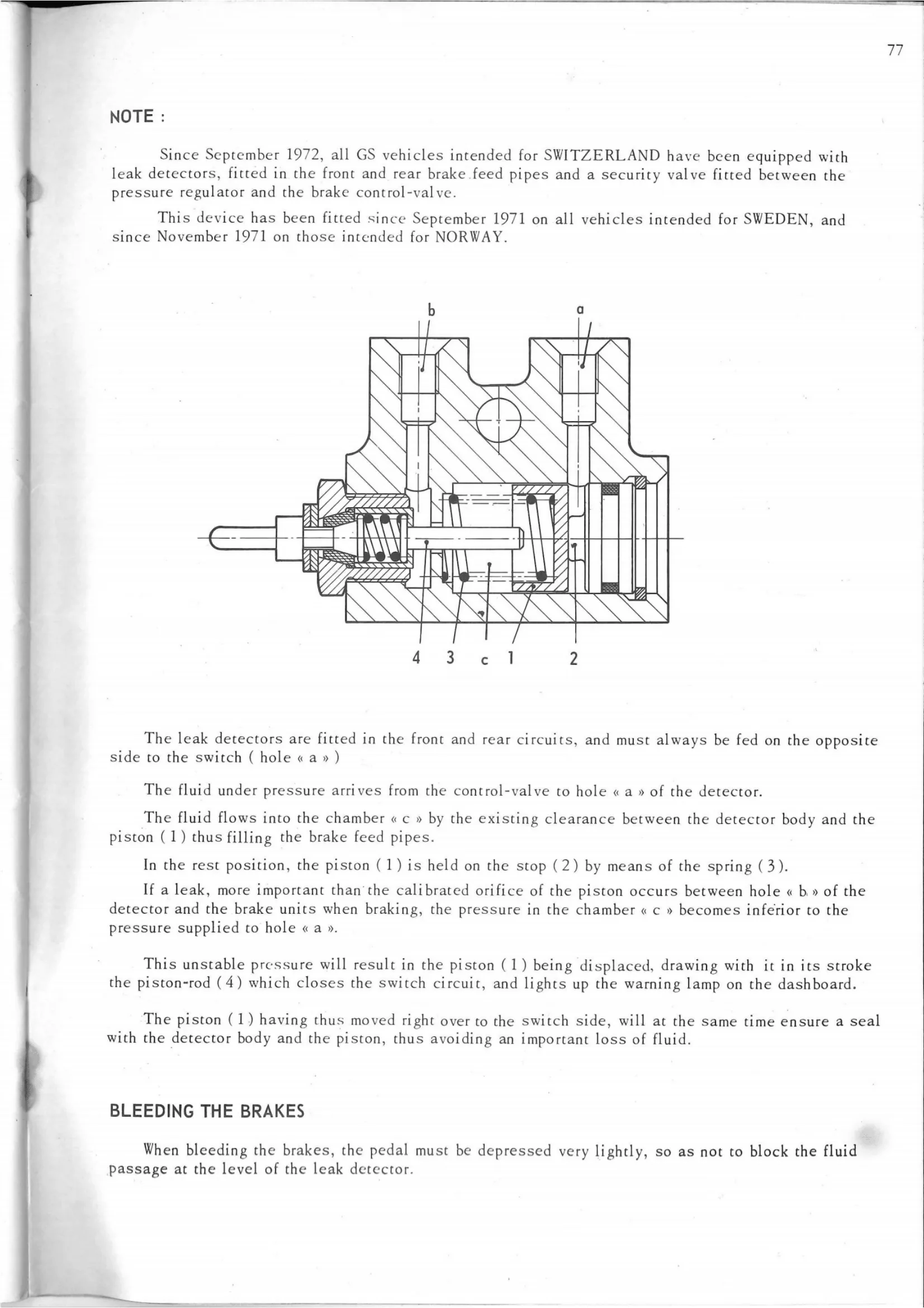

re) NOTE : Since September 1972, all GS vehicles intended for SWITZERLAND have been equipped with leak detectors, fitted in the front and rear brake feed pipes and a security valve fitted between the pressure regulator and the brake control-valve. This device has been fitted since September 1971 on all vehicles intended for SWEDEN, and since November 1971 on those intended for NORWAY.
