REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

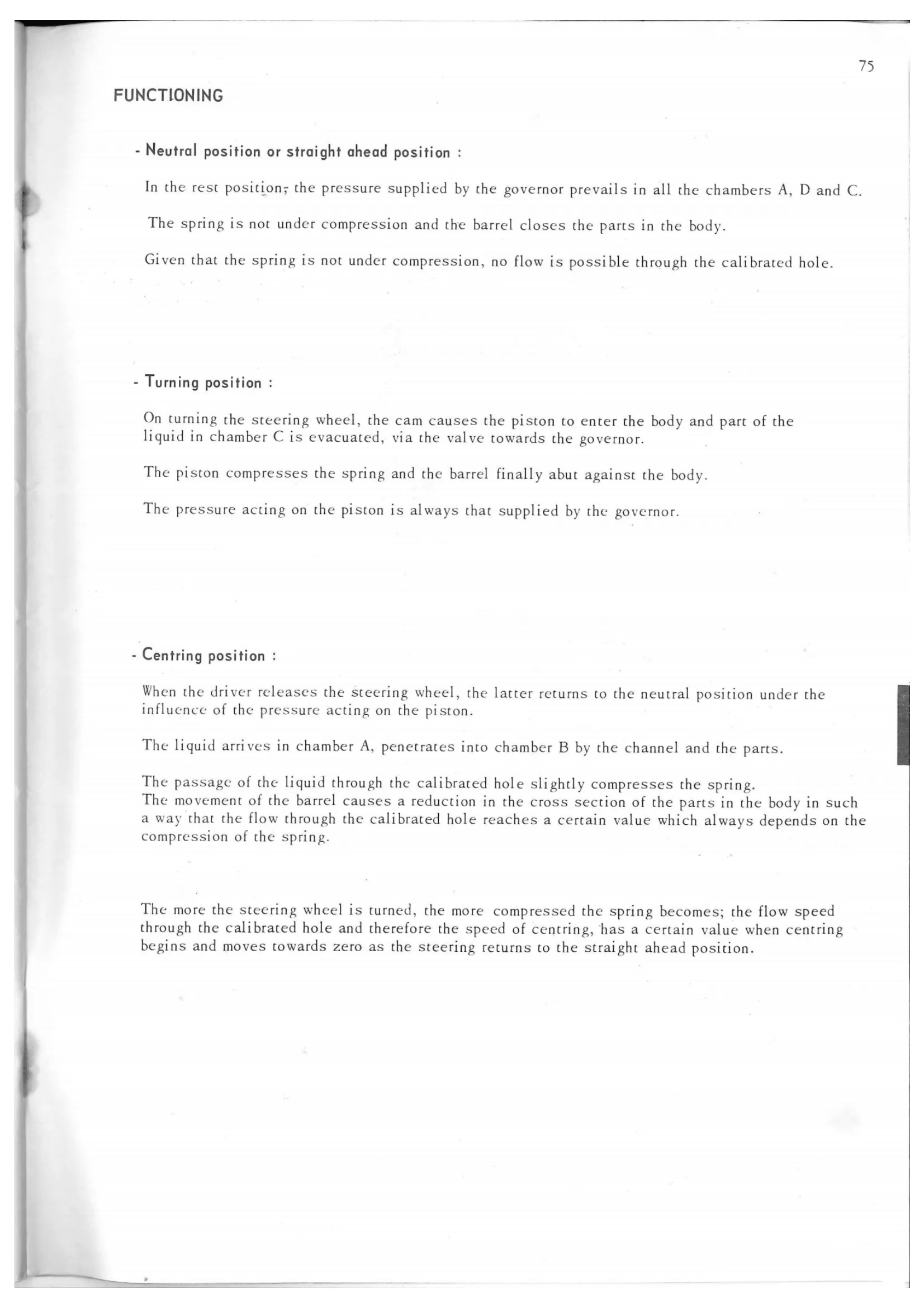

75 FUNCTIONING - Neutral position or straight ahead position : In the rest position; the pressure supplied by the governor prevails in all the chambers A, D and C. The spring is not under compression and the barrel closes the parts in the body. Given that the spring is not under compression, no flow is possible through the calibrated hole. Turning position :
